Accuracy is one of the first specifications buyers compare when evaluating a 3D five-axis laser cutting machine.
A specification sheet may list:
- Positioning accuracy
- Repeat positioning accuracy
- Linear-axis accuracy
- Rotary-axis accuracy
These values are important.
But they do not tell you directly whether a hole on a hot-formed B-pillar, a trim line around a curved component or an angled slot on a hydroformed tube will meet the tolerance on your drawing.
That is because final 3D laser cutting accuracy depends on the complete production system.
It is influenced by:
- Linear-axis motion
- Rotary-axis motion
- Machine geometry
- Tool-center-point calibration
- Cutting-head condition
- Fixture repeatability
- Workpiece variation
- Datum strategy
- CAD/CAM programming
- Laser process parameters
- Thermal conditions
- Measurement method
In a five-axis machine, errors can also interact.
A small angular error in the cutting head may create only a small deviation when the nozzle is close to the rotational center but a larger positional deviation when projected over a greater distance.
Renishaw notes that once two rotary axes are added to three linear axes, the machine controller must accurately know the location of the rotary-axis pivot points so that the tool tip can be positioned correctly relative to the workpiece.
Therefore:

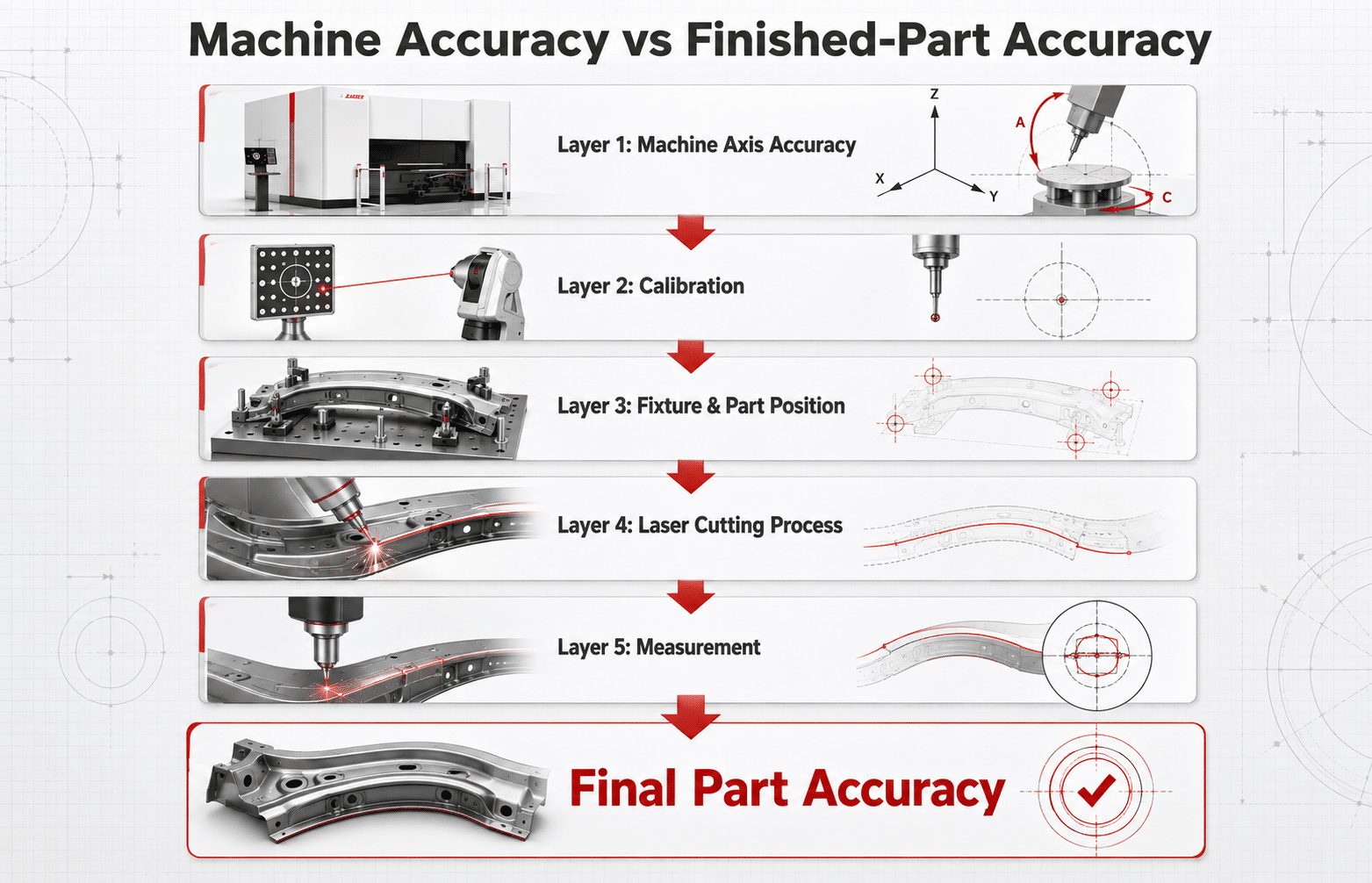

Machine positioning accuracy is not the same as finished-part accuracy.
The correct way to evaluate a five-axis laser project is to understand the entire accuracy chain and then verify it on representative parts.
1. What Does “Accuracy” Mean in Five-Axis Laser Cutting?
Before comparing specifications, separate several different concepts.
Positioning Accuracy
Positioning accuracy describes how closely a machine axis reaches a commanded position.
For example, if the CNC commands an axis to move to a specific coordinate, positioning accuracy describes the difference between the commanded and actual position.
Repeat Positioning Accuracy
Repeat positioning accuracy describes how consistently the axis returns to the same location during repeated movements.
A machine can be highly repeatable but still contain a systematic positional offset.
For example:
- Commanded position: 100.00 mm
- Actual position every cycle: 100.07 mm
The machine may repeat the location consistently while still requiring calibration.
Rotary-Axis Accuracy
In a five-axis machine, rotary-axis errors matter because cutting-head orientation changes continuously.
An angular error can change:
- Laser incidence angle
- Nozzle orientation
- Effective cutting location
- Hole position
- Trim contour
Cutting Accuracy
Cutting accuracy describes the result of the actual laser process, not only axis movement.
It includes effects from:
- Kerf
- Focus
- Cutting speed
- Gas
- Material
- Head orientation
Finished-Part Accuracy
Finished-part accuracy is what the customer ultimately cares about.
It is measured on features such as:
- Hole position
- Trim-line location
- Slot dimensions
- Edge profile
- Feature-to-feature distance
- Overall geometry
This is the result of the complete manufacturing process.
2. Linear-Axis Accuracy Is the Foundation
Most five-axis laser machines use three primary linear axes:
- X
- Y
- Z
These axes control the position of the cutting head within the machine workspace.
Possible linear-axis errors include:
- Positioning error
- Straightness error
- Pitch
- Yaw
- Roll
- Backlash
- Servo following error
- Thermal displacement
Renishaw’s current machine-tool metrology guidance treats linear positioning, straightness, angular errors and multi-axis interpolation as separate contributors to overall machine accuracy.
Why This Matters in 3D Cutting
Imagine that the cutting head follows a long contour across a formed automotive component.
A small X-axis positioning deviation may shift the trim line.
But if the head is also:
- Rotating
- Moving vertically
- Changing direction
the final error becomes dependent on several axes simultaneously.
This is why five-axis performance cannot be evaluated using only the accuracy of one linear axis.
3. Rotary-Axis Accuracy Can Have a Large Effect
Rotary axes differentiate five-axis cutting from conventional flat-sheet laser cutting.
The exact axis names vary by machine architecture, but a five-axis cutting head commonly includes two rotary movements in addition to X, Y and Z.
These rotary axes control cutting-head orientation.

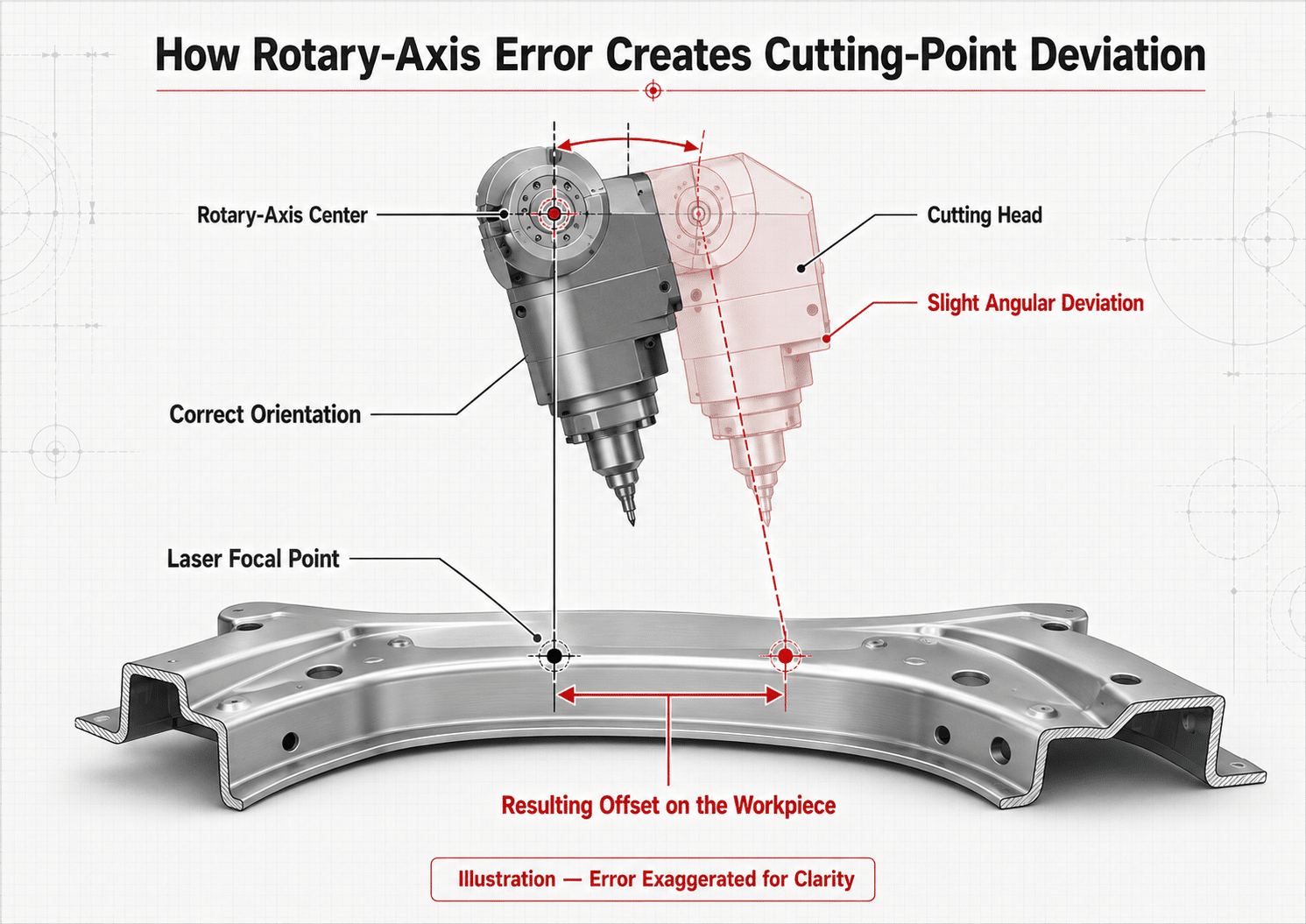

Why Small Angular Errors Matter
Suppose a rotary axis has a small angular deviation.
At the rotation center, the positional effect may be very small.
But as the distance between the rotation center and laser focal point increases, angular deviation produces a greater linear displacement at the cutting point.
Conceptually:
Angular Error + Tool Length = Cutting-Point Position Error
This is why identifying and calibrating rotary-axis pivot points is critical in multi-axis machinery.
Renishaw specifically identifies rotary-axis positioning, alignment and mechanical errors as important error sources in five-axis machines.
Rotary-Axis Errors Can Affect
- Hole center location
- Trim contour position
- Bevel angle
- Nozzle distance
- Cutting-head accessibility
- Transition between surfaces
4. Tool Center Point Calibration Is Critical
One of the most important concepts in five-axis cutting is the Tool Center Point, commonly abbreviated as TCP.
The control system must know the precise relationship between:
- Rotary-axis centers
- Cutting head
- Nozzle
- Laser focal point
As the head rotates, the CNC coordinates the linear axes so that the laser remains on the programmed cutting path.
If TCP calibration is incorrect, rotating the head can cause the focal point to move away from the intended position.
Typical Symptoms of TCP Error
You may see:
- Correct cutting at one head angle
- Increasing offset as the head rotates
- Hole position changing between surfaces
- Trim-line mismatch at orientation transitions
- Different results when approaching the same feature from different directions
When Should Calibration Be Checked?
Calibration may deserve attention after:
- Machine installation
- Cutting-head replacement
- Cutting-head collision
- Nozzle collision
- Major maintenance
- Mechanical adjustment
- Unexpected dimensional drift
TRUMPF’s current 3D laser systems include dedicated functions for checking positioning accuracy because even minor nozzle collisions can shift the cutting optics enough to increase reject rates without the operator immediately noticing the change.
This illustrates an important production principle:
Calibration is not only a commissioning task. It is part of maintaining process capability.
5. Cutting-Head Condition Also Affects Accuracy
The machine may move correctly while the cutting process itself is no longer centered correctly.
Important cutting-head factors include:
- Nozzle centering
- Protective lens condition
- Focus position
- Height sensing
- Nozzle condition
- Optical alignment
Nozzle Centering
The laser beam should be correctly centered relative to the nozzle.
Poor centering can produce asymmetric gas flow and affect:
- Dross
- Kerf
- Edge quality
- Cutting consistency
Focus Position
The correct focus depends on:
- Material
- Thickness
- Cutting process
- Cutting direction
If focal position drifts, the machine may still follow the correct geometric path while the cut quality deteriorates.
TRUMPF’s calibration systems specifically monitor focal position and recognize long-term and temperature drift as factors that can move the real focus away from the programmed condition.
Head Collision
Even a minor contact between:
- Nozzle and part
- Head and fixture
- Head and trimmed slug
should not automatically be treated as harmless.
After a collision, verify:
- Nozzle
- Head position
- TCP
- Calibration
- Cutting test result

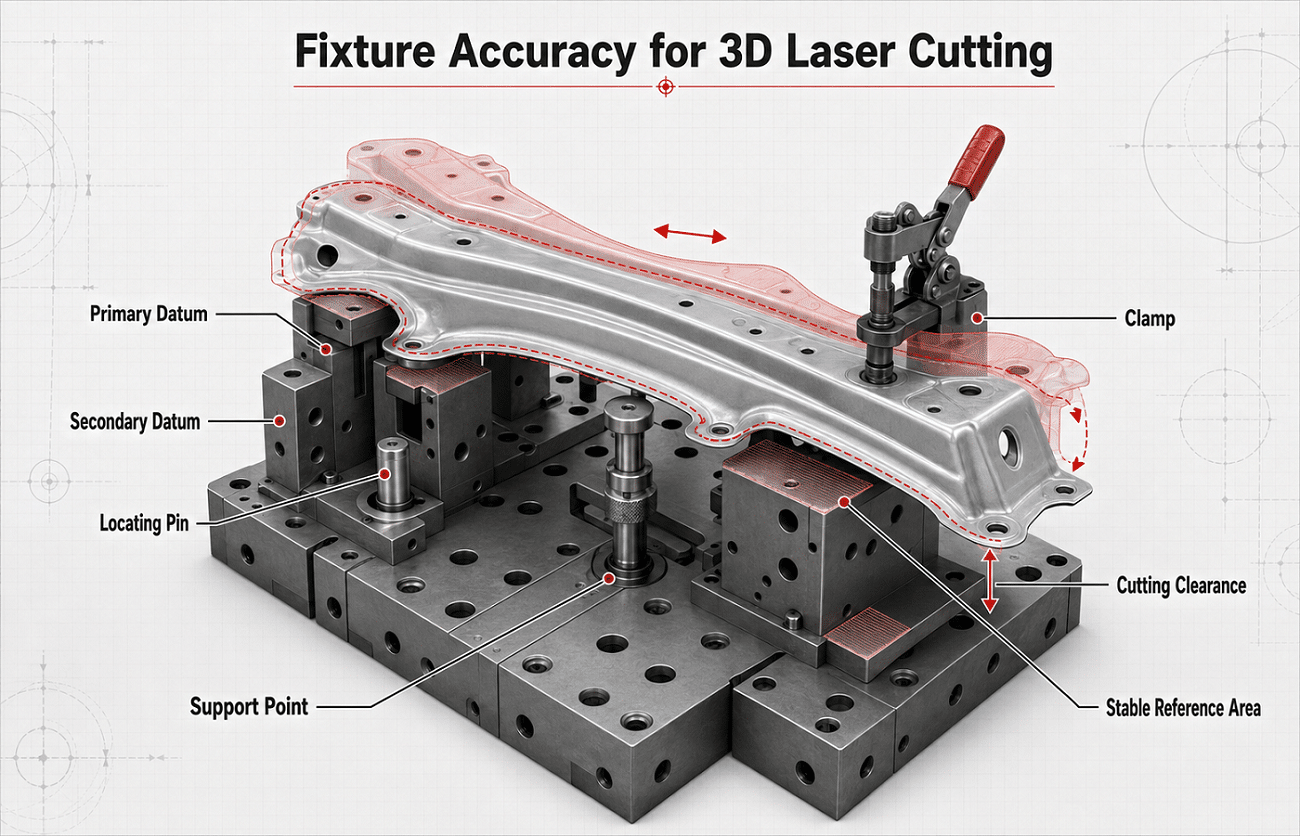

6. The Fixture Is Part of the Accuracy System
A common mistake is to treat the fixture as a simple accessory.
For 3D laser cutting:
The fixture is part of the measurement and positioning chain.
A highly accurate machine cannot produce consistently accurate components if the fixture does not locate the workpiece consistently.
A Fixture Must Control
- Part location
- Orientation
- Support
- Clamping
- Repeatability
Primary, Secondary and Tertiary Location
The fixture should establish a clear datum strategy.
The objective is to prevent uncontrolled movement while avoiding unnecessary over-constraint.
Depending on part geometry, positioning may use:
- Locating pins
- Datum surfaces
- Holes
- Formed surfaces
- Stops
- Support pads
Fixture Repeatability
Ask:
If the operator loads the same part ten times, does the part occupy the same coordinate position each time?
That is more useful than simply asking whether the fixture “holds the part tightly.”
TRUMPF’s 3D laser cutting guidance also treats fixture generation and workholding as an integrated part of 3D processing rather than a separate downstream consideration.
7. More Clamping Force Does Not Mean More Accuracy
A clamp must secure the component.
But excessive clamping can reduce accuracy.
This is particularly important with:
- Thin sheet
- Large formed panels
- Automotive stamped components
- Aluminum parts
- Lightweight structures
Excessive force may push a component into the nominal CAD geometry while it is clamped.
After cutting and unclamping, the component may relax into a different shape.
This creates a difficult situation:
The part appears accurate on the fixture but fails measurement in free state.
Clamping Should Provide
- Sufficient retention
- Repeatable location
- Minimal deformation
- Consistent loading
The fixture should locate the component—not reshape it unless the engineering specification explicitly defines inspection in the constrained condition.
8. Workpiece Variation Cannot Be Ignored
Even when a five-axis machine is perfectly calibrated, incoming parts are not necessarily identical.
This matters because five-axis laser cutting often processes parts after another forming operation.
Examples include:
- Hot stamping
- Cold stamping
- Hydroforming
- Bending
- Casting
- Welding
Possible Part-to-Part Variation Includes
- Overall geometry
- Flange position
- Surface location
- Hole location
- Twist
- Local deformation
- Thickness
- Weld distortion
Hot stamping is particularly attractive in automotive production because it can achieve complex geometry with very low springback compared with many cold-formed high-strength steels. ArcelorMittal highlights good geometric accuracy and reduced or minimal springback as key characteristics of press-hardened steels.
But this does not mean every production part is mathematically identical.
Real production still requires control of:
- Forming tooling
- Blank location
- Heating
- Fixture loading
- Tool wear
- Measurement
Nominal CAD vs Real Part
The CAM system normally generates the cutting path from nominal geometry.
The physical part may differ slightly.
If the variation is small relative to the allowable tolerance, the process may remain acceptable.
If the tolerance is tighter than the incoming variation, the project may require:
- Better upstream control
- Part sensing
- Program compensation
- Adaptive positioning
- Different fixture strategy
9. Datum Strategy Determines Where the Error Appears
Suppose a formed component varies slightly in overall shape.
Where should that variation be absorbed?
The answer depends on datum strategy.
Imagine a long automotive reinforcement with critical mounting holes at one end.
If the component is located from the opposite end, length variation may shift the critical hole position.
A different datum strategy may keep the critical features stable while allowing variation to appear in a less important trimming area.
Start With Functional Datums
Ask:
- Which features locate the part during vehicle assembly?
- Which holes are functionally critical?
- Which trim lines have loose tolerance?
- Which surfaces are reliable locating references?
The laser fixture should follow the engineering logic of the component rather than simply selecting the easiest place to install clamps.
Critical vs Non-Critical Features
Not every dimension needs the same tolerance.
Classify features:
Critical
- Assembly holes
- Locating holes
- Joining interfaces
- Safety-related geometry
General
- Non-functional trim edges
- Clearance openings
- Scrap-removal contours
This helps the application engineer prioritize accuracy where it creates value.
10. Coordinate-System Setup Can Create Systematic Errors
The machine, fixture and CAD model must share a consistent coordinate system.
Typical references may include:
- Machine coordinate system
- Fixture coordinate system
- Workpiece coordinate system
- CAD coordinate system
If these are not aligned correctly, the entire cutting program may shift.
Typical Symptoms
- Every feature shifted in one direction
- Correct dimensions between holes but wrong absolute position
- Consistent rotational offset
- Program works on one fixture but not another
Causes Can Include
- Incorrect zero point
- Wrong fixture offset
- Incorrect CAD orientation
- Incorrect fixture installation
- Wrong program revision
These problems are different from random machine repeatability errors.
A systematic offset should normally trigger a coordinate and calibration investigation before process parameters are changed.
11. Offline Programming Affects Geometric Accuracy
Five-axis laser cutting requires more than drawing a 2D contour.
The software determines:
- Tool path
- Cutting direction
- Head orientation
- Axis interpolation
- Lead-in
- Lead-out
- Piercing position
- Collision avoidance
TRUMPF’s 3D programming system, for example, imports 3D CAD data and generates three-dimensional cutting proposals specifically for this type of multi-axis processing.
CAD Model Quality Matters
Problems may arise from:
- Wrong revision
- Broken surfaces
- Incorrect units
- Incorrect coordinate system
- Nominal geometry that does not represent production parts
Tool Orientation Matters
The head orientation can influence:
- Kerf position
- Taper
- Gas effectiveness
- Head clearance
Two programs following the same nominal trim line may produce different results if they use different cutting-head orientations.
12. Collision Avoidance Can Affect the Cutting Path
The mathematically ideal cutting-head orientation is not always physically possible.
The cutting head must avoid:
- Workpiece walls
- Clamps
- Supports
- Locating pins
- Fixture frame
- Machine enclosure
The programmer may need to change head orientation to create sufficient clearance.
This means fixture design, accessibility and accuracy are interconnected.
Poor Fixture Design Can Force Poor Tool Orientation
For example:
A clamp placed too close to a critical hole may require the cutting head to approach at an unfavorable angle.
Moving the clamp may improve:
- Access
- Gas flow
- Head orientation
- Collision clearance
without changing the machine.
This is why the machine, fixture and program should be evaluated as one system.
13. Laser Process Parameters Affect the Actual Cut Position
A geometrically perfect machine can still produce an inaccurate finished edge if the cutting process is unstable.
Important variables include:
- Laser power
- Cutting speed
- Focus
- Assist gas
- Gas pressure
- Nozzle
- Stand-off distance
- Piercing
- Kerf compensation
TRUMPF’s 3D cutting guidance identifies laser power, focus, speed, gas pressure and piercing strategy as key cutting parameters used together to achieve the required process result.
Kerf Compensation
The programmed laser path may need an offset to account for kerf width.
If kerf compensation is wrong:
- Hole diameters change
- External contours shift
- Slots become too wide or narrow
Cutting Direction
Depending on the process, cutting direction and head angle can influence the finished edge.
This becomes particularly relevant when inspecting a feature at tight tolerance.
14. Assist Gas Can Influence Dimensional Quality
Assist gas is primarily used to remove molten material from the kerf.
But poor gas delivery can indirectly affect dimensional results by producing:
- Dross
- Incomplete cutting
- Uneven kerf
- Edge damage
Three-dimensional surfaces create additional challenges because the nozzle may not remain perpendicular to the local surface.
Variables include:
- Nozzle-to-part distance
- Head angle
- Gas flow
- Surface geometry
- Slag direction
A parameter validated on a flat coupon should not automatically be assumed to produce the same result on a recessed 3D feature.
15. Thermal Conditions Can Cause Drift
Industrial machines operate for hours or multiple shifts.
During this time:
- Motors generate heat
- Bearings warm
- Machine structures change temperature
- Optics heat
- Factory temperature changes
These effects can produce gradual drift.
Renishaw includes thermal distortion among the error sources that influence multi-axis machine performance.
TRUMPF similarly identifies temperature drift as one reason focal position may move away from the required location over time.
Production Evaluation Should Therefore Include
- Warm-up procedure
- First-part inspection
- Periodic verification
- Calibration schedule
- Environmental control where necessary
A sample cut immediately after commissioning does not automatically prove long-term production stability.
16. Machine Collision Can Create Hidden Accuracy Problems
A severe collision is obvious.
A minor nozzle contact may not be.
The operator may see:
- No visible damage
- Machine still running
- Cutting still possible
but the cutting head or optics may have shifted slightly.
TRUMPF explicitly warns that small nozzle collisions can cause minor positioning errors that are not visible to the operator and can result in increased scrap. Its ObserveLine system is designed to periodically check machine positioning for exactly this reason.
After a Collision
Consider checking:
- Nozzle condition
- Nozzle centering
- Cutting head
- TCP calibration
- Focus
- Test-cut geometry
- Critical feature dimensions
Do not immediately compensate the NC program for a machine that has physically moved out of calibration.

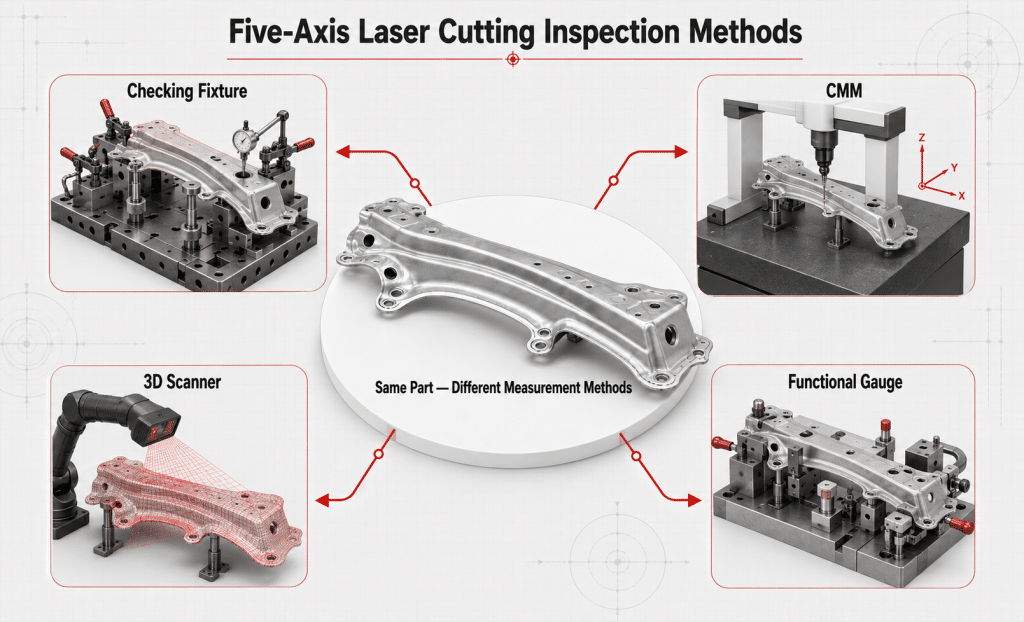

17. Inspection Method Changes the Reported Result
Accuracy is meaningless unless measurement conditions are defined.
A complex formed component may be measured:
- Free-state
- On the laser fixture
- On a dedicated checking fixture
- On a CMM
- Using a 3D scanner
- Using gauges
These methods may produce different results.
Example
A thin formed panel may sit slightly differently when:
- Unsupported
- Clamped
- Located on an inspection fixture
Therefore, the drawing and quality plan should define how the finished component will be accepted.
Measurement Datum Must Match Manufacturing Datum
If production locates the part using one datum system but quality control measures from an unrelated reference, apparent errors may be introduced.
Engineering, production and quality teams should therefore agree on:
- Datums
- Measurement state
- Measurement equipment
- Tolerance
- Sampling frequency
before the machine acceptance test.
18. Accuracy and Repeatability Are Not the Same as Process Capability
A machine may cut one good part.
That does not prove the production process is stable.
A buyer evaluating mass production should distinguish:
Feasibility
Can the machine produce the required geometry once?
Repeatability
Can it produce similar results repeatedly?
Process Capability
Can the complete production process stay within the specified tolerance over continued production?
Process capability includes more than machine motion.
It includes:
- Incoming part variation
- Fixture
- Operator
- Calibration
- Cutting parameters
- Consumables
- Measurement
For critical production, the acceptance plan may require repeated sample parts rather than a single demonstration piece.
19. A Practical Accuracy Chain
For engineering discussion, final part deviation can be thought of conceptually as:
Final Part Deviation ≈ Machine + Calibration + Fixture + Workpiece + Cutting Process + Measurement
This is not a mathematical tolerance formula.
The errors cannot simply be added together because:
- Some are systematic
- Some are random
- Some interact
- Some occur in different directions
However, the model is useful because it prevents one common mistake:
blaming every dimensional problem on machine positioning accuracy.
Example
A hole shifts 0.4 mm between two production parts.
Possible causes include:
- Machine movement
- Fixture loading
- Incoming part geometry
- Datum selection
- TCP
- Program
- Measurement
The investigation should identify which part of the chain changed.
20. How Do You Diagnose an Accuracy Problem?
Use a structured process.
Problem A — Every Part Has the Same Offset
Possible causes:
- Coordinate offset
- TCP calibration
- Fixture location
- Program error
Investigate systematic errors first.
Problem B — Parts Vary Randomly
Possible causes:
- Fixture repeatability
- Incoming part variation
- Loose locating points
- Process instability
- Measurement variation
Problem C — Error Changes With Cutting-Head Angle
Possible causes:
- Rotary-axis calibration
- TCP
- Head geometry
Problem D — Error Changes Across the Machine Workspace
Possible causes:
- Machine geometry
- Linear-axis calibration
- Rotary-axis relationship
- Thermal effects
Problem E — Dimensions Are Correct but Edge Is Poor
Possible causes:
- Focus
- Speed
- Gas
- Nozzle
- Material
Do not correct geometric errors by randomly changing cutting parameters.
21. Common Accuracy Problems and Solutions
| Problem | Possible Cause | First Check |
|---|---|---|
| Entire contour shifted | Coordinate or fixture offset | Workpiece zero and fixture |
| Hole position changes with head angle | TCP or rotary calibration | Five-axis calibration |
| Same part loads differently | Fixture repeatability | Locating surfaces and clamps |
| Hole diameter incorrect | Kerf compensation | Cutting parameters |
| One side accurate, other side offset | Part geometry or datum strategy | Incoming part and fixture |
| Accuracy changes after collision | Cutting-head shift | Calibration |
| Accuracy changes during long production | Thermal drift | Verification and environment |
| Good on fixture, bad after unclamping | Clamping deformation | Fixture force |
| Different results between parts | Incoming part variation | Measure blanks/formings |
| CMM and checking fixture disagree | Measurement datum | Inspection method |
22. How Can Five-Axis Cutting Accuracy Be Improved?
Improvement should start with the dominant error source.
Machine
- Maintain linear axes
- Verify rotary axes
- Check machine geometry
- Follow calibration intervals
Cutting Head
- Center nozzle
- Inspect protective optics
- Verify focus
- Recalibrate after collisions
Fixture
- Use stable datums
- Minimize over-clamping
- Clean locating surfaces
- Check locating-pin wear
- Verify fixture installation
Workpiece
- Monitor incoming part geometry
- Control upstream forming
- Separate abnormal parts
Programming
- Confirm model revision
- Optimize cutting-head orientation
- Verify coordinate systems
- Simulate collisions
Process
- Validate power
- Speed
- Focus
- Gas
- Kerf compensation
Inspection
- Define functional datums
- Use a consistent measurement state
- Measure repeated parts
Accuracy improvement is therefore usually a system optimization task, not simply a machine-parameter adjustment.
23. How Accurate Does Your Application Actually Need to Be?
Do not specify the tightest possible tolerance on every feature.
Every unnecessary tolerance can increase:
- Fixture complexity
- Inspection time
- Calibration requirements
- Scrap risk
- Equipment cost
Separate features into categories.
Critical Features
Examples:
- Assembly locating holes
- Bolt positions
- Welding interfaces
- Functional slots
Moderate-Tolerance Features
Examples:
- General mounting holes
- Trim edges near joining areas
Non-Critical Features
Examples:
- Clearance openings
- Scrap contours
- Non-functional edges
A tolerance should reflect the functional requirement of the component.
The purchasing question is not:
“What is the smallest tolerance your machine can claim?”
It should be:
“Can the complete process repeatedly meet the tolerances that matter on my part?”

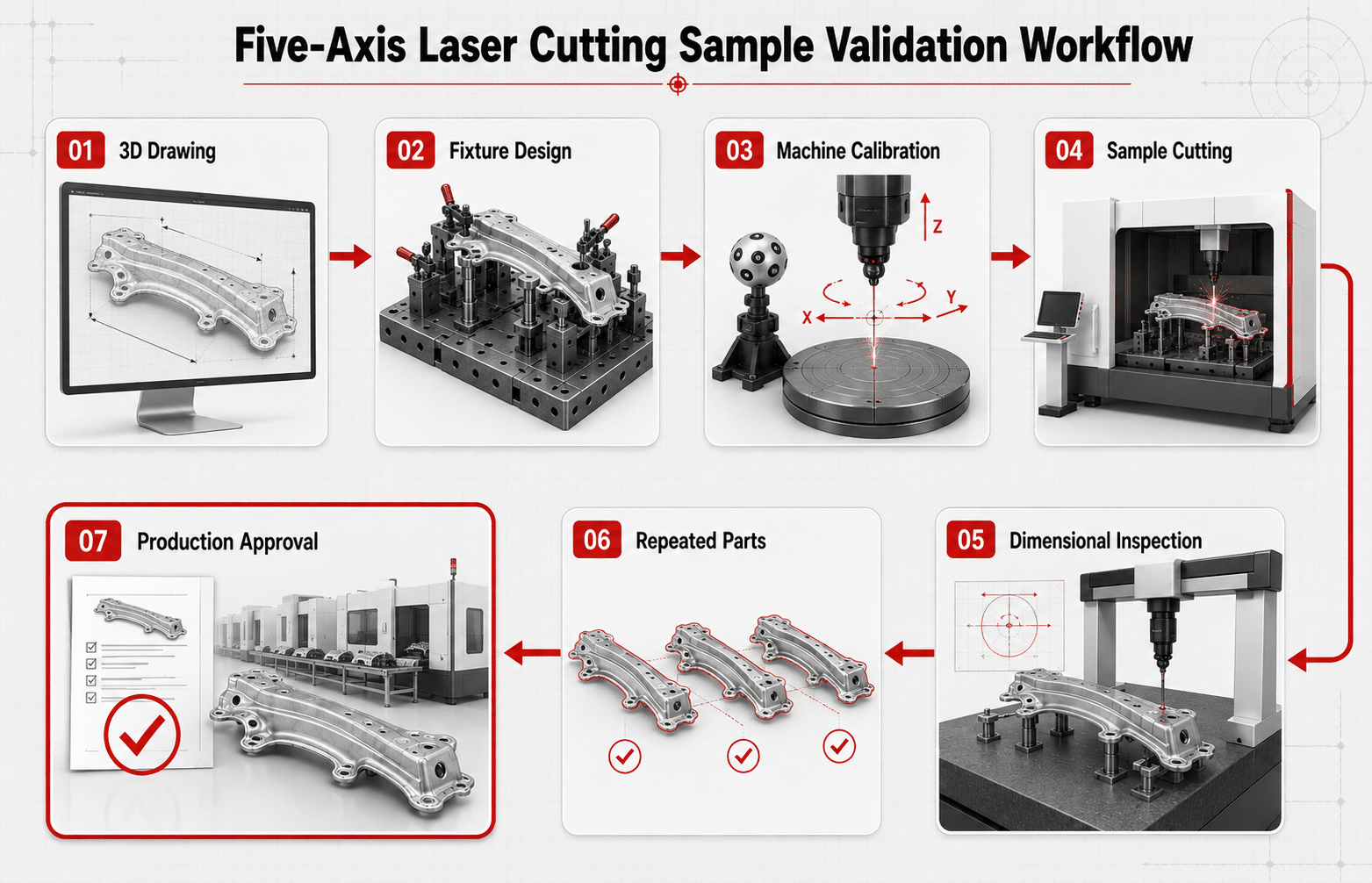

24. Why Sample Testing Is Essential
For five-axis projects, brochure specifications are not enough.
A representative sample test provides information about:
- Accessibility
- Fixture
- Calibration
- Cutting quality
- Dimensional accuracy
- Cycle time
Supply the Actual Part
Whenever possible, provide:
- Production sample
- 3D CAD
- 2D drawing
- Material
- Thickness
- Critical tolerances
Include Difficult Features
The test part should include:
- Deep side-wall features
- Small holes
- Angled surfaces
- Long trim contours
- Tight-clearance areas
- Critical assembly features
Cut More Than One Part
For serious production projects:
one part tests feasibility
while:
multiple parts begin to evaluate repeatability.
25. What Should Be Recorded During a Sample Test?
Do not record only cutting speed.
Document:
Machine
- Model
- Working range
- Laser source
- Laser power
- Cutting head
Fixture
- Datum points
- Clamping method
- Loading method
Process
- Gas
- Nozzle
- Focus
- Cutting speed
- Piercing strategy
Accuracy
- Critical dimensions
- Inspection method
- Datum system
- Measurement state
Production
- Loading time
- Cutting time
- Unloading time
- Total cycle time
This creates a repeatable engineering record rather than a marketing demonstration.
26. How Should Machine Specifications Be Read?
Consider a specification such as:
Repeat Positioning Accuracy: ±X mm
It tells you something important about machine motion.
It does not automatically mean:
Every feature on every 3D workpiece will be within ±X mm.
The finished result also includes:
- Rotary motion
- TCP
- Fixture
- Part geometry
- Cutting process
- Measurement
For comparison, TRUMPF publishes separate values for linear-axis positioning accuracy and rotary-axis positioning accuracy on its 3D laser platforms, while also providing independent machine-position monitoring and optics setup functions.
This illustrates the correct way to interpret specifications:
machine-axis data describes the machine
while:
sample inspection verifies the production result.
ZG Laser similarly publishes machine-motion specifications on its five-axis product pages, but actual achievable part tolerance should be confirmed according to the customer’s geometry, fixture and process rather than inferred directly from one specification value.
27. Accuracy Requirements for Hot-Formed Automotive Parts
Hot-formed automotive components are one of the most important five-axis laser applications.
Typical parts include:
- B-pillars
- Door rings
- Crossmembers
- Roof rails
- Rocker reinforcements
- Bumper structures
The cutting system may need to create:
- Final trim contours
- Locating holes
- Assembly holes
- Welding features
- Slots
These components often enter highly repeatable downstream assembly processes.
Therefore, accuracy evaluation should consider:
- Functional datums
- Fixture repeatability
- Formed-part geometry
- Critical hole positions
- Body-in-white assembly requirements
ZG Laser’s current five-axis product range is specifically positioned around hot-formed automotive components and complex 3D trimming.
28. Five-Axis Machine Accuracy vs Robotic Laser Cutting Accuracy
A related question is whether a dedicated five-axis machine is automatically more accurate than a robot.
The answer depends on the actual systems.
A dedicated five-axis machine and articulated robot have different motion structures.
Factors include:
- Machine kinematics
- Robot model
- Calibration
- Reach
- Posture
- Fixture
- Application
The correct comparison is therefore not based on architecture alone.
It should use:
- The same part
- The same critical dimensions
- The same inspection method
- Repeated samples
Five-axis laser cutting vs robotic laser cutting
29. Questions to Ask a Five-Axis Laser Supplier About Accuracy
Before purchasing a machine, ask:
- What is the positioning accuracy of the linear axes?
- What is the repeat positioning accuracy?
- What rotary-axis accuracy is specified?
- How is the five-axis system calibrated?
- How is the TCP calibrated?
- How often should calibration be checked?
- What should be checked after a nozzle collision?
- How is focus verified?
- How is nozzle centering checked?
- How is the fixture referenced to the machine?
- Can the supplier assist with fixture design?
- Can part sensing be integrated?
- Which offline programming software is used?
- Is complete collision simulation available?
- Can the actual production part be tested?
- How will the sample be measured?
- Can several repeated parts be cut?
- What acceptance criteria will be used?
- Can inspection reports be provided?
- What maintenance is required to maintain accuracy?
The supplier should explain the accuracy process, not only quote the smallest number on the specification sheet.
30. Final Accuracy Evaluation Checklist
Before approving a five-axis laser project, confirm:
- Linear-axis specifications reviewed
- Rotary-axis performance reviewed
- TCP calibration method understood
- Cutting-head calibration procedure defined
- Fixture datums agreed
- Fixture repeatability evaluated
- Clamp deformation evaluated
- Incoming part variation understood
- CAD revision confirmed
- Coordinate system confirmed
- Cutting-head accessibility simulated
- Collision check completed
- Laser parameters tested
- Kerf compensation validated
- Measurement method agreed
- Critical dimensions identified
- Repeated sample parts tested
- Cycle time measured
- Acceptance criteria documented
- Calibration maintenance plan defined
Conclusion
3D five-axis laser cutting accuracy is not determined by one specification.
The machine’s linear and rotary axes provide the foundation, but final part accuracy also depends on:
- Tool-center-point calibration
- Cutting-head condition
- Fixture repeatability
- Workpiece geometry
- Datum strategy
- Offline programming
- Laser process parameters
- Thermal stability
- Inspection method
This is why:
positioning accuracy should not be treated as a guaranteed finished-part tolerance.
For a real production project, the most reliable method is to provide the actual 3D part, define the critical dimensions, design the fixture, calibrate the complete system and verify the result through repeated sample cutting.
The question buyers should ask is not:
“What is your machine accuracy?”
It is:
“Can this complete process repeatedly produce my actual part within the required tolerance?”
That is the more meaningful definition of five-axis laser cutting accuracy.
Verify Your Part Before Selecting a Five-Axis Machine
Send ZG Laser:
- Your 3D model
- 2D drawing
- Material
- Thickness
- Critical dimensions
- Required tolerances
- Annual volume
- Target cycle time
Our application team can evaluate:
- Machine working range
- Cutting-head accessibility
- Fixture strategy
- Five-axis cutting path
- Sample-testing requirements
before recommending a machine configuration.
Frequently Asked Questions
What determines five-axis laser cutting accuracy?
Final accuracy depends on linear and rotary axes, machine geometry, TCP calibration, cutting-head condition, fixture repeatability, workpiece variation, cutting parameters and measurement method.
Is machine positioning accuracy the same as cutting accuracy?
No. Positioning accuracy describes machine-axis movement. Finished-part cutting accuracy also includes rotary-axis behavior, fixture, workpiece geometry, kerf, process parameters and inspection.
What is TCP in five-axis laser cutting?
TCP means Tool Center Point. The control system must know the exact position of the cutting point relative to the machine’s rotary axes so that the focal point remains on the programmed path as the head rotates.
Why is rotary-axis calibration important?
A small angular error can create a positional error at the laser focal point. Renishaw identifies rotary-axis position, alignment and pivot-point calibration as important contributors to five-axis machine accuracy.
Can the fixture affect laser cutting accuracy?
Yes. If the fixture locates the part differently between cycles, the cutting path will be applied to a differently positioned workpiece even when the machine repeats perfectly.
Can excessive clamping reduce accuracy?
Yes. Excessive clamping can deform thin or formed components, creating dimensions that change after the part is released.
Why does accuracy change after a cutting-head collision?
A collision may shift the nozzle, cutting optics or calibrated cutting-head relationship. TRUMPF specifically monitors machine positioning because even minor nozzle collisions can create unnoticed positioning errors.
Does higher laser power improve cutting accuracy?
Not necessarily. Laser power affects process capability, but geometric accuracy depends on many other factors. Excessive or poorly optimized energy can also reduce edge quality.
How should five-axis accuracy be tested?
Use the actual or representative 3D component, a production-style fixture and agreed inspection datums. Measure critical features and cut several repeated samples when production stability is important.
How often should a five-axis machine be calibrated?
There is no universal interval for every machine. Calibration frequency should follow the machine manufacturer’s recommendations and production requirements, with additional verification after collisions, major maintenance or unexplained dimensional changes.
Can part sensing compensate for incoming workpiece variation?
Depending on the machine and sensing system, probing, vision or other measurement methods may be used to locate parts or apply corrections. The required capability should be defined according to the actual variation and tolerance.
What accuracy should I request when buying a five-axis laser machine?
Start from the finished-part drawing. Define critical tolerances and the inspection method, then ask the supplier to demonstrate those requirements through sample testing rather than selecting equipment solely from the smallest positioning-accuracy figure.
