LASER MARKING MACHINE

Each time the Chutian Laser is benchmark tested, it is faster, provides better readability, and has a greater positioning tolerance. In order to ensure stable results, our experts provide the tools you need. Among them, our air knife can prevent dust from accumulating on the lens, and our autofocus system can adjust the marking according to the change of positioning.

OEM Laser Marking Systems for Integrators

Each laser series offers a different range of power, operates at a specific wavelength and is optimized for different applications. Our fiber laser marking systems are optimized to process metals, whereas our CO2 and UV laser marking systems are optimized for organic materials.

2

DESKTOP LASER MARKING MACHINE

Designed for fast marking, it uses a pulsed fiber laser, a high-speed scanning oscillator, and a focusing system to enable marking jobs to be done quickly and accurately. The air cooling system effectively cools the machine and consumes low power.

3

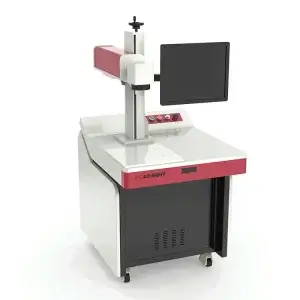

STANDING LASER MARKING MACHINE

This metal fiber laser etcher with a computer is the best choice for customers with special requirements for the smallest and finest laser beam and characteristics. The software is already installed, and the parameters are defined before delivery. Once received, the metal fiber laser etcher can work without any data adjustment.

Enclosed Laser Marking Machine

LASER MARKING BENCH

Power: 20-200w

White plastic marking black

The power range of ZG LASER UV laser marking machine is 3W-10W. The focusing spot is extremely small and the heat-affected area is small, so there is no thermal effect, and the problem of deformation or scorching when processing plastics is avoided.

Laser marking strips the electroplated layer

Fiber laser marking machines are used in various marking companies that have precise marking requirements or assembly line operations. They can be used to strip paint on plastic and metal electroplating layers, and they can also be used in other industries such as glass, wood, and leather.

Black metal marking white

ZG LASER fiber laser marking machine can print white characters and patterns on metal, and can mark black, white, yellow and other colors through parameter setting. The color of laser marking mainly depends on the nature of the material, and secondly depends on the size of the laser power, speed, width, and frequency.

BENEFITS OF OUR LASER MARKING SYSTEMS

AVOID MECHANICAL ADJUSTMENTS

Never again mechanically adjust part positioning at the last minute. Our laser markers are equipped with everything you need to be in focus all the time.

  • Our 2D heads have a depth of focus of 6 mm— the highest standard for 2D heads.
  • For deeper variations, our 3D heads add a large focusing range.
  • If parts are positioned randomly in the marking area, our 3D autofocus system adds up to 3 axes of compensation to automatically adjust the marking configuration for each part.
  • If moving parts need to be marked on the fly, you just need to provide an encoder signal.

INSTALL HIGH-QUALITY INLINE SOLUTIONS

Our lasers require the least amount of maintenance of any laser technology available. Not only do they use a non-contact, consumable-free marking technique, but all of our laser heads are also IP67 certified. Furthermore, the laser source of our solid-state fiber lasers can run continuously for 100,000 hours, or more than 10 years.

ACCELERATE INTEGRATION

During the engineering and commissioning of your laser marking devices, you may save time. Preconfigured peripherals, such as a barcode reader and an air knife to protect the lens, are available from ZG LASER. We also provide Class-1 laser safety certification to assist you in designing marking solutions that keep workers safe from laser emissions.

MEET CHALLENGING REQUIREMENTS

Our systems reliably create high-contrast 2D codes, even in high-speed manufacturing lines, and are designed to satisfy today’s throughput requirements and AIM DPM criteria. They can also engrave direct part marks that remain readable after shotblasting, e-coating, powder coating, and heat treatment to fulfill stringent traceability requirements.

GET SUPPORT FROM LASER EXPERTS

Contact us whenever you require assistance and receive real-time remote support via our secure platform. If necessary, our specialists will be able to take control of the laser and troubleshoot any problems.

Increase your productivity today
