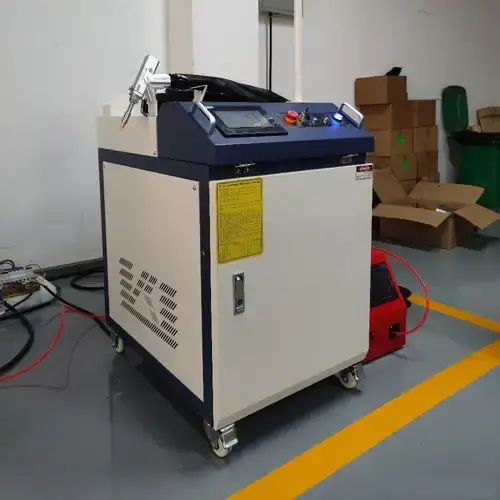

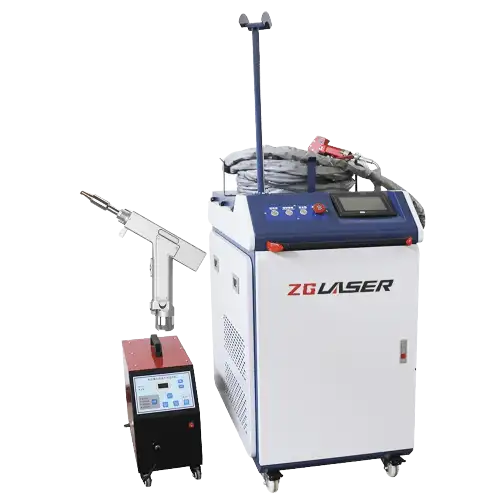

ZG-QCWHandheld Laser Welding Machine
ZG-QCW handheld laser welding machine can achieve flexible and convenient welding at any angle. It is equipped with a swinging handheld laser head, which is light in weight and flexible enough to weld any part of the workpiece and is not easily fatigued for long-term work. It is also equipped with 3-8m imported brand optical fiber, which can realize ultra-long distance operation, reach a wide range, flexible and convenient.
Handheld Laser Welding Machine Options
Welding Done at Random

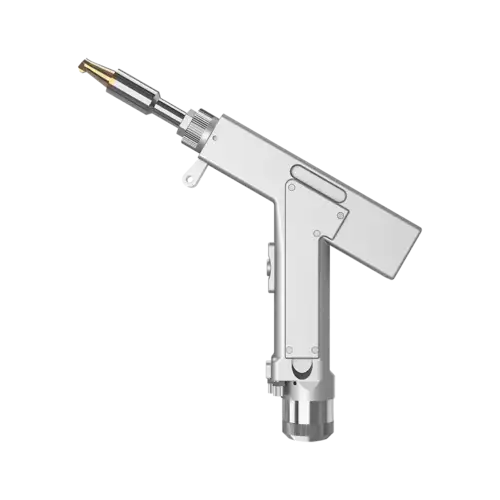

Handheld laser head is lightweight and flexible, and it can weld to any area of the workpiece. It also works for a long time without becoming fatigued.
Strong Weld Seams
Weld seam transition is smooth, there are no fish scale patterns, and the weld seam is strong.
Welding with a small heat-affected zone and workpiece deformation.
Small Footprint
One-piece design, integrated laser, water tank, and control part, minimal site needs, fitted with moveable pulley, change the workstation at any moment, easy and flexible
Low Cost
Continuous laser electro-optical conversion efficiency of more than 30%, ten times that of a solid YAG laser (3%), power stability of less than 0.5 percent.
LASER SYSTEM OPTIONS
Laser Power
The ZG-QCW handheld laser welding machine is available with 1000W /1500W/2000W of output power.
Welding materials
Metal materials such as stainless steel, aluminum alloy, galvanized sheet, carbon steel sheet, etc.
Welding method
Various joint methods such as tailor welding, female fillet welding, male fillet welding, penetration welding and lap welding can be realized
Suitable for industry
Household appliances, hardware manufacturing, electrical cabinets, environmental protection equipment and other industries
For our complete list of features and options, contact a Chutian Laser expert.
TECHNICAL SPECIFICATIONS
Welds are aesthetically pleasing and smooth in transition under working mode of continuous laser. With little deformation and tiny bulge, slight or almost no further polishing is needed, saving labor and time costs. Welding strength of some metals is even higher than parent metal. The tensile strength is generally high.
| Feature/Model | ZG-QCW1000 /1500 / 2000 |
|---|---|
| Laser Power | 1000W 1500W 2000W |
| Power Stability | ±2% |
| Laser Wavelength | 1064nm |
| Laser Mode | Continuous & Pulsed |
| Fiber length | 5-10m |
| Pulse Frequency | 1~2500Hz |
| Welding thickness | 0.5-3mm |
| Power Consumption | ≤7KW / ≤9KW /≤11KW |
| Power Supply | AC220V±10%50/60Hz single phase |
| Locating System | red laser assistance |
| Flexible Worktable | support co-work with robot arm |
| Cooling Method | Independent Water Cooling |
| Welding requirements | ≤0.4mm |
| Welding speed | 0-120mm/s |

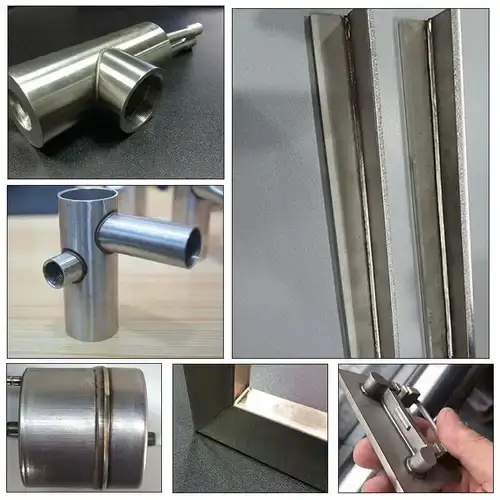

Samples

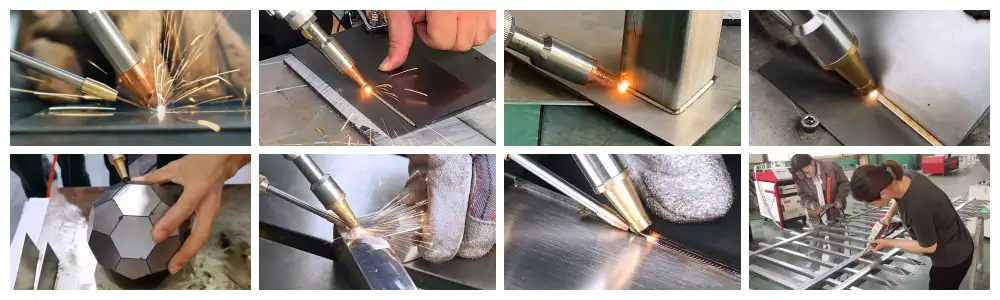

APPLICATIONS
ZG Laser has 35 years of professional experience in the field of laser welding applications, specializing in manufacturing laser welding equipment, and providing customers around the world with complete industrial laser welding solutions, high-speed, high-efficiency, and high-quality.

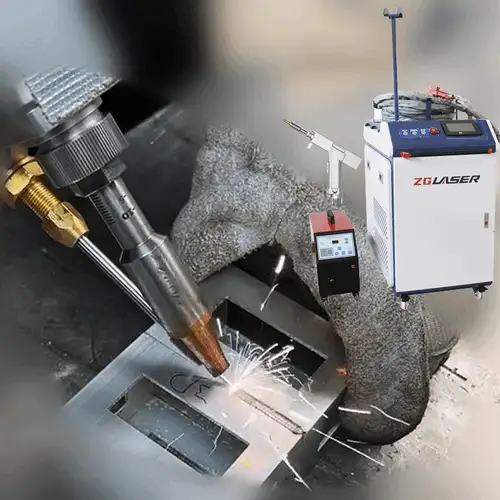

Hand-held laser welding machine
ZG-HW handheld laser welding machine series have the advantages of simple operation, beautiful welding seam, fast welding speed and no consumables.
COMPLETE REMOTE SERVICE WHENEVER YOU NEED IT
More Products

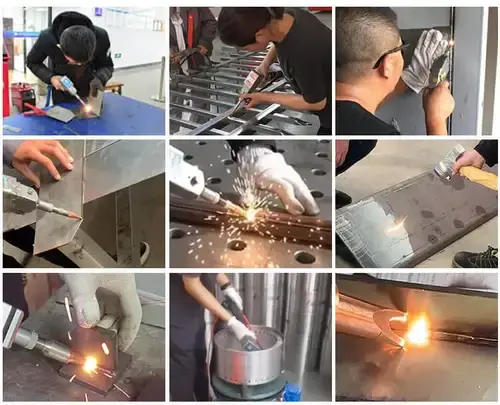

ZG-HW 3 In 1 Handheld Laser Welder
The 3-in-1 handheld laser welder has both laser cutting and laser cleaning functions because of its unique laser system, which allows free conversion between the three functions for multiple industrial uses.
ZG-GX Robot Laser Welding Machine
It can effectively improve the working conditions of workers, reduce the requirement of workers’ operation skills and improve production and factory efficiency.

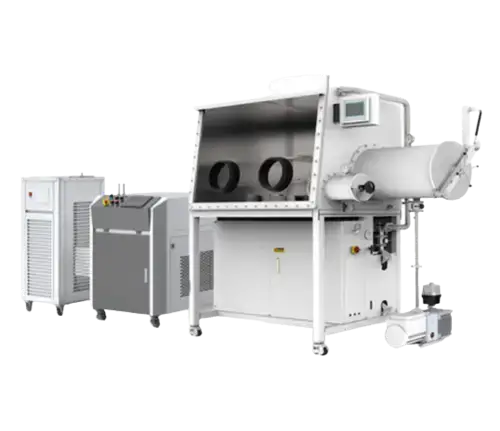

ZG-1GX Glove Box Laser Welding Machine
