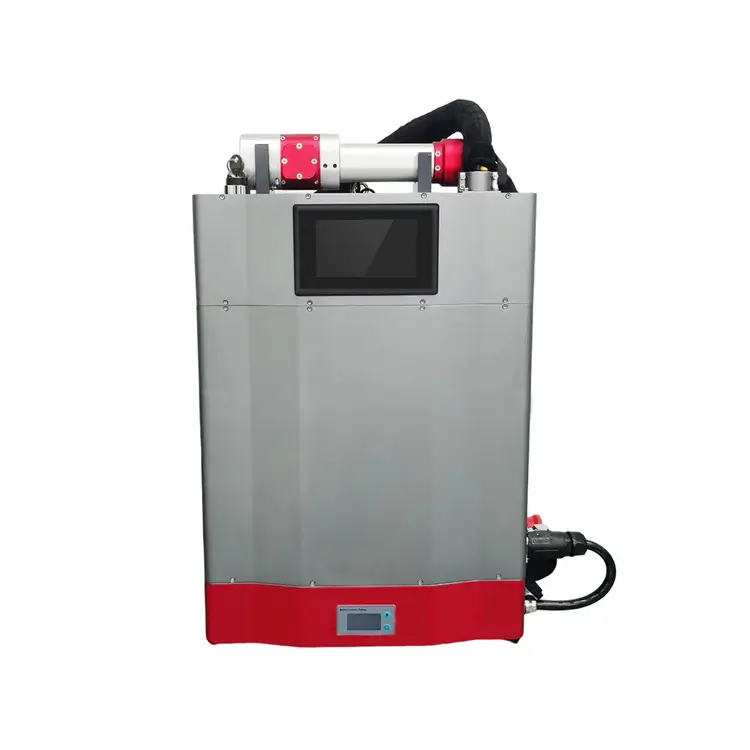

ZG-HCM-100BBackpack Laser Cleaning Machine
The ZG-HC100B Backpack Laser Cleaner uses the latest generation of powerful pulsed lasers. No chemicals, no media, no dust, and no need for acid or dry ice cleaning.
Allows for autofocus precise surface cleaning, as well as controlled depth cleaning. Removes resin, stains, debris, rust, coatings and paint from virtually any surface.
Cleans smoothly, quickly and discreetly with no damage to the base metal or original surface.

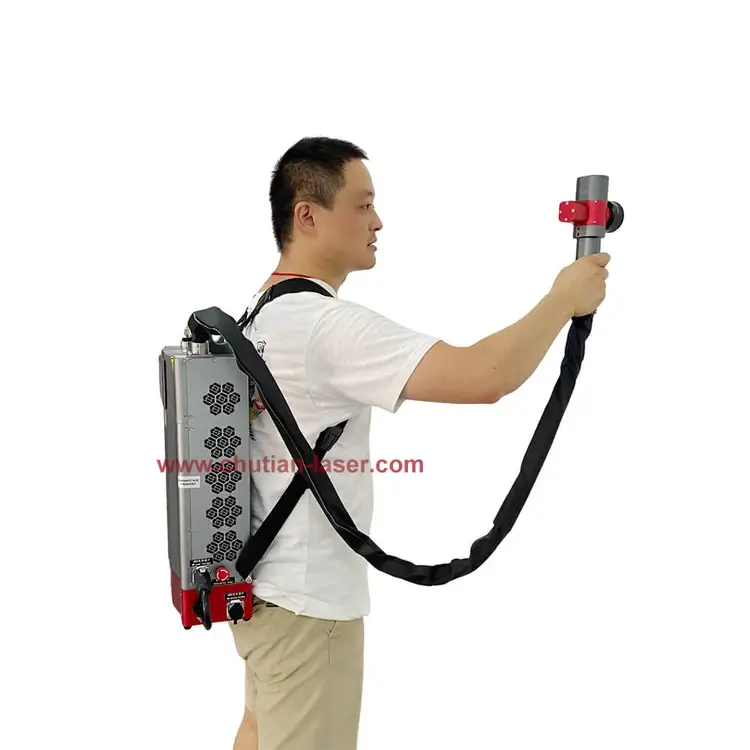

The comfortable back frame and lightweight construction allow longer working time. The mobile laser system is fully operational, even without on-site power, thanks to battery operation.
OPTION

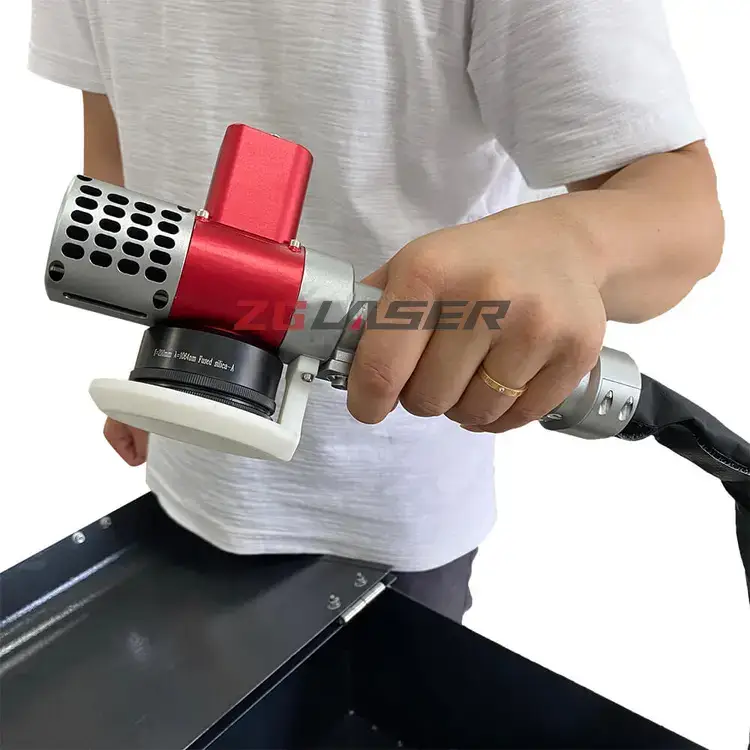

Handheld Laser Cleaning Gun
A lightweight, habit-compliant laser cleaning gun allows you to use it for long periods. The red light aiming system allows you to perform accurate laser cleaning

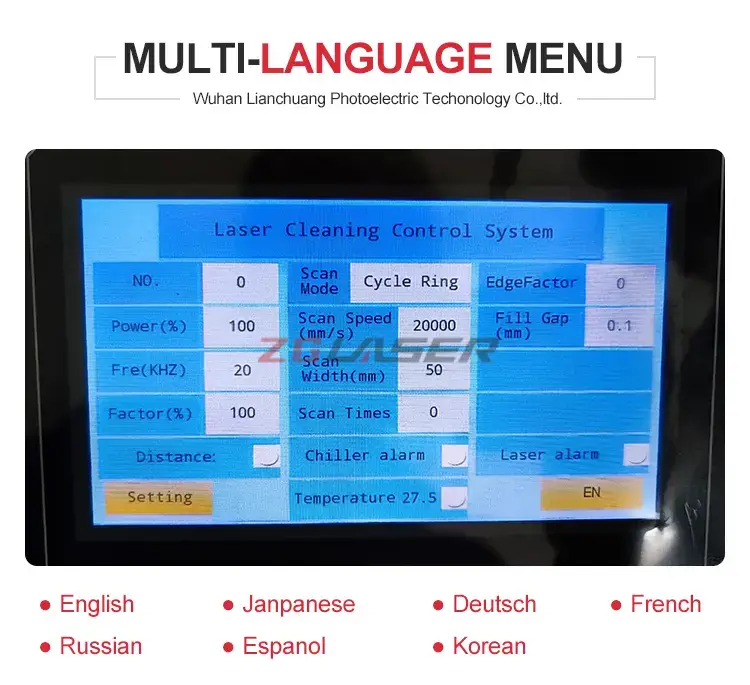

Intelligent Control Panel
Full touch screen operation interface, adjustable multiple cleaning modes, easy and convenient to operate, saving your debugging time.
Air Cooling Design
Both sides are covered with air cooling system to cool down the laser during the working process, making it work continuously.
Fiber Laser Generator
Laser cleaning made easy with 100W MOPA pulsed laser, light weight and excellent performance
Feature
- Optional lithium battery: allows it to work anywhere.
- Red dot indicator: allows easy and precise focus.
- Portable design: ergonomic design allows you to carry it without damaging your shoulder
- Lightweight: 12.5kg weight makes it easy to carry it on your back for work
For our complete list of features and options, contact a Chutian Laser expert.
TECHNICAL SPECIFICATIONS
| Model | ZG-HC100B | ||
|---|---|---|---|
| Laser Power | 100W | ||
| Laser Source | Fiber Laser | ||
| Laser Type | Pulsed Laser | ||
| Laser Frequency | 1-3000kHz | ||
| Fiber Cable Length | 3m (customizable) | ||
| Cooling Method | Air Cooling | ||
| Scan Speed | 30000mm/s | ||
| Scan Mode | 7 patterns | ||
| Scan Width | 120mm | ||
| Dimension | 336mm×129mm×400/500mm | ||
| Focusing Method | Red Light Pointer | ||
| Weight | 12.5KG | ||
| Laser Cleaning Gun Weight | ≤1.2KG | ||
| Operation | Handheld/Station Based | ||
| Power Supply | Lithium Battery（optional） AC 110v - 240v / 380v 50Hz/60Hz | ||
APPLICATIONS INDUSTRY
• Rust removal
• Mold cleaning
• Paint stripping
• Baking plate cleaning
• Heat seal die cleaning
• Art or antique restoration
• and many more
