ZG-CWLaser Cladding Machine
The ZG-CW series of intelligent laser cladding additive manufacturing equipment can be customized according to the actual needs of customers. ZG-CW not only has an exquisite industrial design appearance, but also the price and cost are controlled in the middle and low range, which is suitable for batch and lean manufacturing. In addition, the laser can be freely configured, the main components are all self-made, the system is highly integrated, coupled with special customized software, a variety of process packages and accessories, can fully meet the general needs of the market.
Laser Cladding Machine

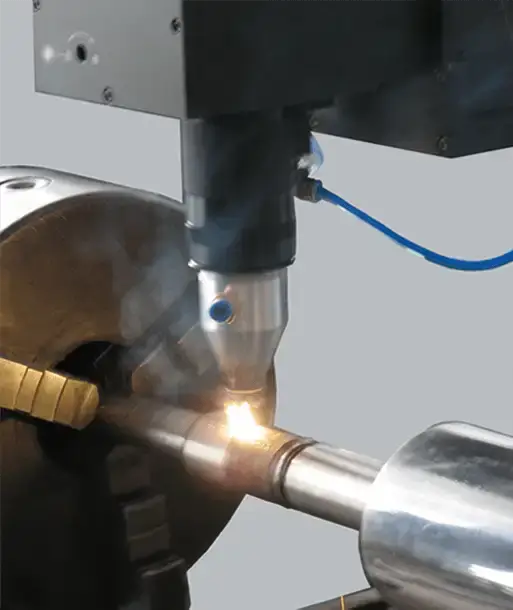

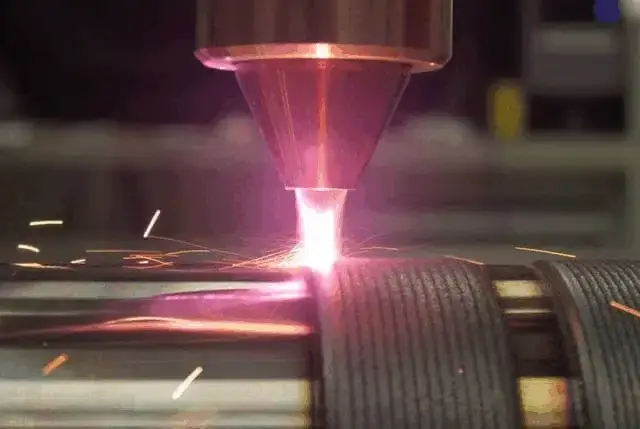

High-speed laser cladding nozzle
The nozzle significantly improves the efficiency and service life, and the cladding efficiency is 0.8-1.2m²/hr (depending on the thickness of the coating)

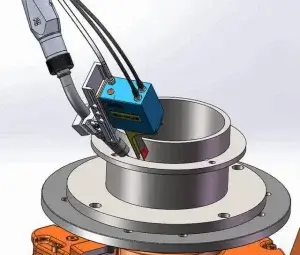

Oscillating Welding Head
Multi-graphic spot selection, wide range of adaptation, welding to first-class welding seam standards
Chutian Customized Service
Robot processing range: 0-8000mm
Robot brand is optional, as is power, which ranges from 4kw to 30kw.
Multiple Application Modes
For thick plates of stainless steel, high-strength steel, aluminum alloy, titanium alloy, and other materials to be welded and clad.
LASER SYSTEM OPTIONS
Laser Power
The ZG-CW laser cladding machine is available with 1000W /1500W/2000W /3000W of output power.
Welding materials:
Metal materials such as stainless steel, aluminum alloy, galvanized sheet, carbon steel sheet, etc.
Welding method

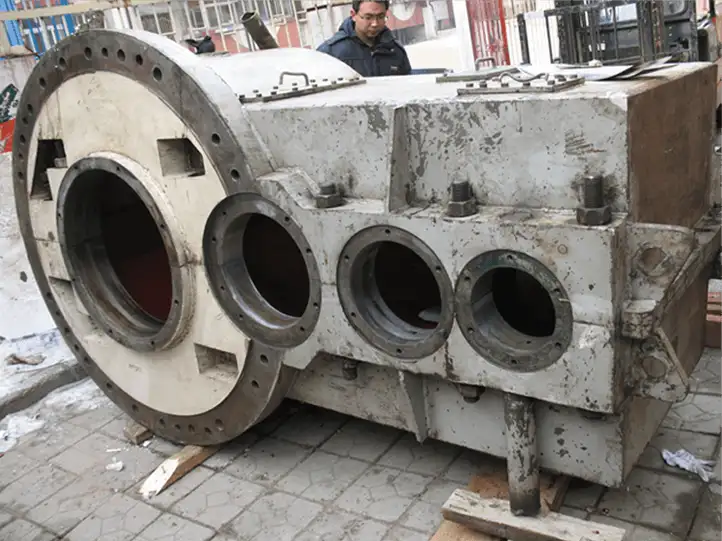

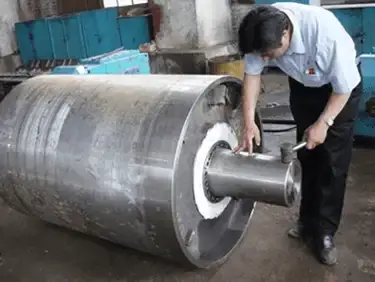

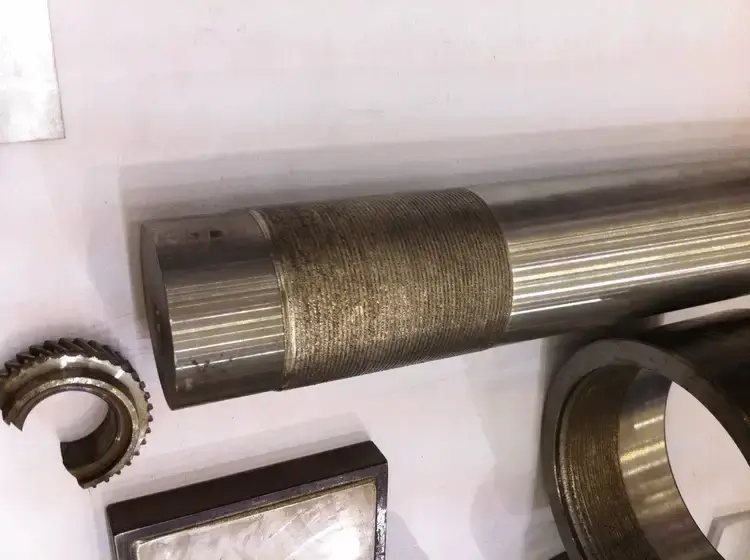

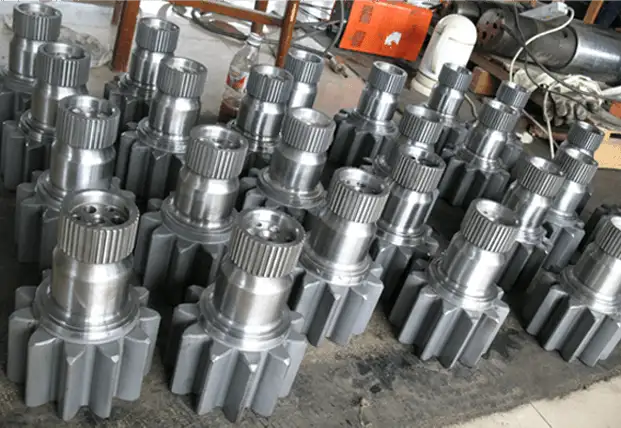

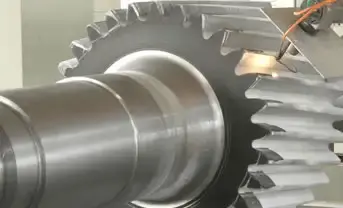

Parts repair; parts directly forming; material and process research and development; laser power can be freely configured; 3-axis or 5-axis motion control system; can be used as an assembly line workstation
Suitable for industry
Household appliances, hardware manufacturing, electrical cabinets, environmental protection equipment and other industries
For our complete list of features and options, contact a Chutian Laser expert.
TECHNICAL SPECIFICATIONS

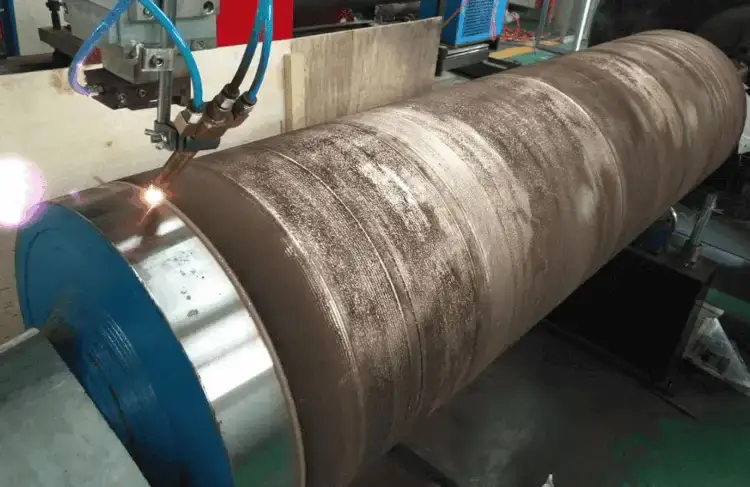

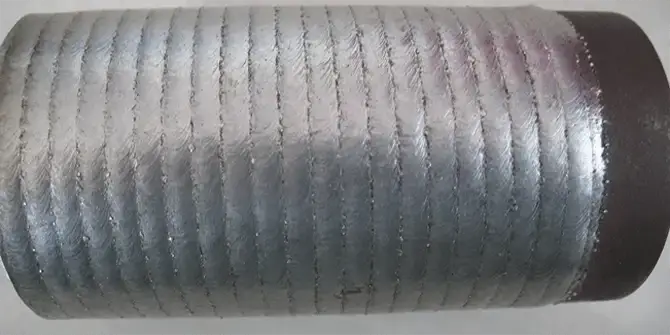

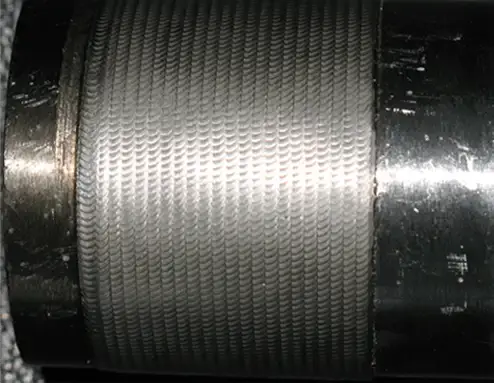

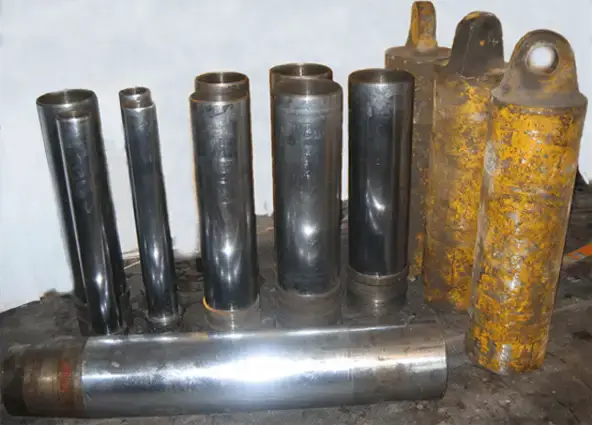

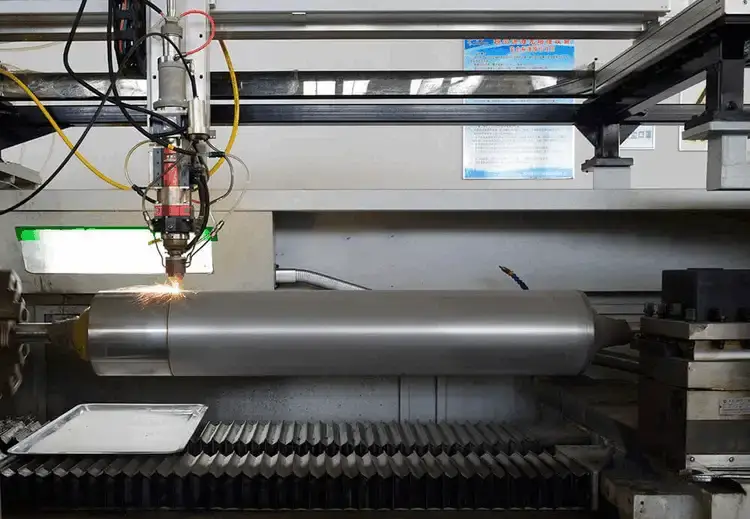

ZG LASER’s laser cladding equipment ZG-CW series is an advanced environmentally friendly remanufacturing technology. Aiming at replacing hard chrome-plated shaft parts, ZG LASER has successfully developed ultra-high-speed cladding equipment and process methods, which can realize turning and melting Cover integrated processing.
| Feature/Model | ZG-CW1000 /1500 / 2000/3000 |
|---|---|
| Laser Power | 1000W 1500W 2000W 3000W |
| Power Stability | ±2% |
| Laser Wavelength | 1064nm |
| Laser Mode | Continuous & Pulsed |
| Fiber length | 5-10m |
| Pulse Frequency | 1~2500Hz |
| Welding thickness | 0.5-3mm |
| Power Consumption | ≤7KW / ≤9KW /≤11KW |
| Power Supply | AC220V±10%50/60Hz single phase |
| Locating System | red laser assistance |
| Flexible Worktable | support co-work with robot arm |
| Cooling Method | Independent Water Cooling |
| Welding requirements | ≤0.4mm |
| Welding speed | 0-120mm/s |
APPLICATIONS
ZG Laser has 35 years of professional experience in the field of laser welding applications, specializing in manufacturing laser welding equipment, and providing customers around the world with complete industrial laser welding solutions, high-speed, high-efficiency, and high-quality.
Hand-held laser welding machine
ZG-HW handheld laser welding machine series have the advantages of simple operation, beautiful welding seam, fast welding speed and no consumables.

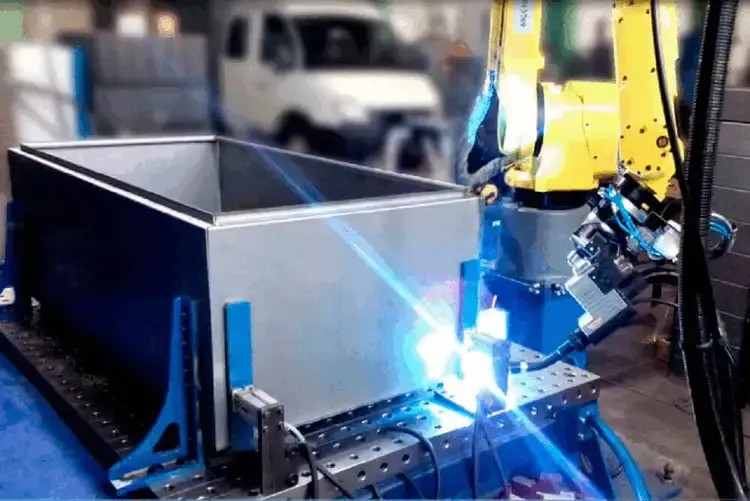

Robot laser welding machine
The ZG-RW robot laser welding machine adopts a high-precision welding robot, which can realize the welding of multiple varieties and large quantities of products. Man-machine operation is convenient, automatic loading and unloading, ZGlaser’s laser welding professional is equipped with professional customized solutions for customers.
Automatic laser welding machine
The ZG-JW automatic laser welding machine series have high welding accuracy. The CNC positioning modules are placed on both sides, and the welding head has an automatic rotation function. Professional welding fixtures can be customized according to customer requirements to realize automatic welding.
Galvo laser welding machine
ZG-1GY-500/700B glove box laser welding machine is composed of laser, glove box, laser power supply, optical system, CNC control system, refrigeration system and other components. It is mainly suitable for precision welding of special materials that require welding environment.
