Tube Laser Cutting Machine

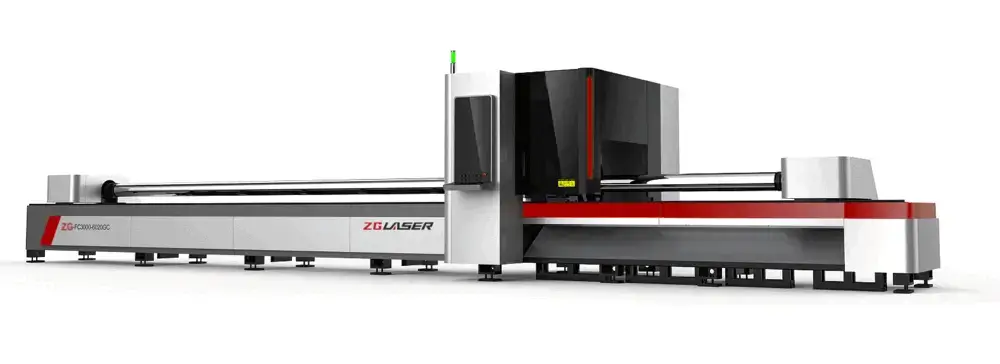

ZG-FCTube Laser Cutting Machine

The professional laser pipe cutting machine is an economical laser pipe cutting machine. It integrates laser processing equipment of light, machine and electricity. It can quickly process various specifications of sheet metal pipes. It has rapid processing, small cutting seams, and thermal effect. Small features, especially suitable for sheet metal processing.

Laser Tube Cutting Machine Options

gcjc

Integrated Machine Bed

The overall use of heavy machine tool welding structure stress relief annealing after rough finishing, secondary aging treatment to eliminate stress, anti-deformation, more durable, high-temperature annealing and natural aging to eliminate welding stress, to ensure long-term use of stable non-deformation.

e58887e589b2e5a4b4

Raytools brand cutting head

This laser cutting head is suitable for industrial applications of medium and high power fiber lasers.
It uses imported closed-loop motors to punch and cut various material thicknesses at high speed with 0.01mm repeatability.

kp

Clamp Design

Adopt high-precision chuck, three-jaw wedge-shaped oversized through-hole collet. The sliding surface of the chuck is hardened and precision ground, and directly lubricated for high quality to ensure stable and reliable high-speed operation.

e794b5e69cba

Dual drive servo motor

Adopt gantry type imported brand double servo motor drive system, synchronous double drive, effectively ensure the high speed, high precision and high stability of the whole machine operation when cutting.

e5afbce8bda8

Transmission components

The core transmission components of the machine tool, such as reducer, gears and rack, are selected to ensure the long-term high-speed cutting accuracy and durability of the equipment.

e68ea7e588b6e7b3bbe7bb9f

Precision and Speed

Simple visualization operating system, intuitive adjustment of laser power, gas type and pressure; intelligent edge-seeking, automatic positioning; laser sheet metal processing special processing system, easy installation, simple operation, excellent performance, complete process solutions to achieve stable and high-precision cutting, set a powerful data process library, to bring users a simple, convenient and efficient intelligent experience.

TECHNICAL SPECIFICATIONS

Professional pipe fiber laser cutting machine is used to cut square tube, rectangular tube, oval tube, waist-shaped tube, hexagonal tube; pipe laser cutting machine can realize opening, cutting and precision cutting of various different complex shapes that are difficult to achieve by conventional methods.

Feature/Model ZGFC-Tube
Cutting Length 6000mm
Cutting Diameter Φ: 20-220mm , □: 20-140mm
Configuration 3-axis
X-axis Travel 500mm
Y-axis Travel 6000mm
Z-axis Travel 350mm
X/Y Axis Moving Speed 80m/min
A/B/C Large Speed 90 rpm
X/Y Axis Positioning Accuracy ±0.03mm/1000mm
X/Y Axis Repeatable Positioning Accuracy ±0.03mm

APPLICATIONS

Specialized in cutting round, square, flat round, oval, shaped, U-shaped, T-shaped, H-shaped, L-shaped and many other metal pipes.

SAMPLES OF ZG-GC

20220425152401

COMPLETE REMOTE SERVICE WHENEVER YOU NEED IT

20220519154622
