ZG-HCHandheld Laser Cleaning Machine
The ZG-HC Portable Fiber Laser Cleaner is a high-powered handheld fiber laser cleaner. This high-performance, industrial-grade laser cleaning equipment is a super-compact, professional-grade laser cleaning and surface preparation system for medium-sized areas requiring good cleaning, paint removal, and other surface preparation operations. It can be used in conjunction with industrial robots.
OPTION
Handheld Laser Cleaning Gun
The handheld laser cleaning gun has a suitable weight for prolonged handheld use. Comes with a software panel for quick adjustment of parameters. With the fixture interface can be used in combination with the robot arm to achieve automatic cleaning.
Intelligent Control Panel
Full touch screen operation interface, large range of built-in parameter adjustment, one key start, convenient and quick, working status is clear at a glance.
Built-in Water Chiller Design
It can avoid the shackles of wires to fit more sites and has good dustproof and anti-condensation effects.
Fiber Laser Generator
The JPT, Raycus, and MAX lasers are optional and feature higher photoelectric conversion efficiency, low mistake rate, low power consumption, no maintenance, and small size.
Other Features
- Fiber optic cable: 5-10m branded fiber optic (customizable) allows for long distance cleaning.
- Universal wheels: are easy to move and install. (Wheels can be locked to prevent sliding during operation).
- Red dot pointer: can be easily and precisely focused.
- Automation Interface: Easy coupling with robot arm for automatic work.
Feature
- Fiber laser cleaner specializes in metal rust, dust, paint, coatings, and other high-powered work, so there is no need to consume.
- No chemicals and cleaning liquids are used; the waste is a solid powder, small volume, easy to store, and recyclable.
- The laser is transmitted via fiber optics, facilitating long-distance operation and allowing cleaning of parts that conventional methods cannot reach. This can be used in certain hazardous areas to ensure personnel safety.
- Laser cleaning removes a wide range of contaminants from various material surfaces, resulting in a level of cleanliness that cannot be achieved by conventional cleaning. It can also selectively clean material surfaces without damaging them.
For our complete list of features and options, contact a Chutian Laser expert.
TECHNICAL SPECIFICATIONS
| Model | ZG-HC1000 | ZG-HC1500 | ZG-HC2000 | |
|---|---|---|---|---|
| Laser Power | 1000Watt | 1500Watt | 2000Watt | |
| Laser Source | Raycus / JPT / IPG Fiber Laser | |||
| Laser Type | Continuous Wave Laser | |||
| Laser Frequency | 20-200kHz | |||
| Fiber Cable Length | 5-10m (customizable) | |||
| Cooling Method | Built-in Water Cooling | |||
| Scan Speed | 30000mm/s | |||
| Scan Mode | 7 patterns | |||
| Scan Width | 300mm | |||
| Dimension | 884mm×525mm×693mm | 1106mm*644mm*1165mm | ||
| Focusing Method | Red Light Pointer | |||
| Weight | 90KG | 100KG | 240KG | |
| Laser Cleaning Gun Weight | ≤1.2KG | |||
| Operation | Handheld/Station Based | |||
| Power Supply | AC 110v - 240v / 380v 50Hz/60Hz | |||
| Work Temperature | 0~40℃ | |||
APPLICATIONS INDUSTRY
Manufacture plant, construction works, machinery repair shops, advertising, energy & mining, building material shops, shipbuilding, auto components, rubber mold, high-end machine manufacturing, tire molde track, environmental protection industry
Samples

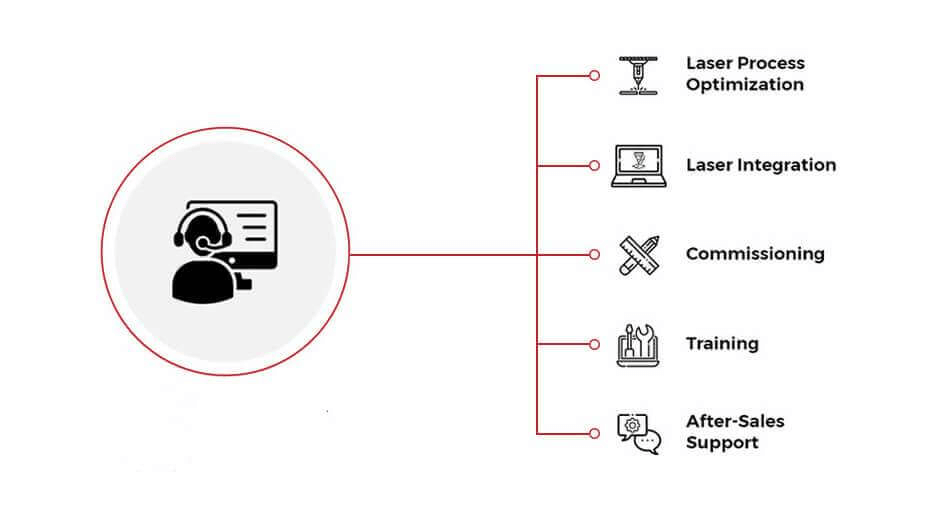

COMPLETE REMOTE SERVICE WHENEVER YOU NEED IT
