ZG-LC100Laser Cleaning Machine
The Chutian Handheld Portable ZG-LC100 is an air-cooled pulsed/continuous laser system that promises high performance, industrial-grade, fast, precise, and incredibly productive laser cleaning.
The ultra-compact housing is designed as a professional-grade laser cleaning and surface preparation system for small areas requiring fine cleaning, paint removal, and other surface preparation operations.
PRODUCT PHOTOS




Previous
Next
PRODUCT FEATURES

Portable Designed Suitcase Model

Work Area With Red Light Preview

Durable Fiber Cable

Handheld Operating
LASER OPTIONS

Handheld Laser Head
Work with more flexible

Handheld Control Card
- Remote Control
- Easy Parameters Setting
- English Interface

Laser Protective Glasses
Resistance to laser radiation

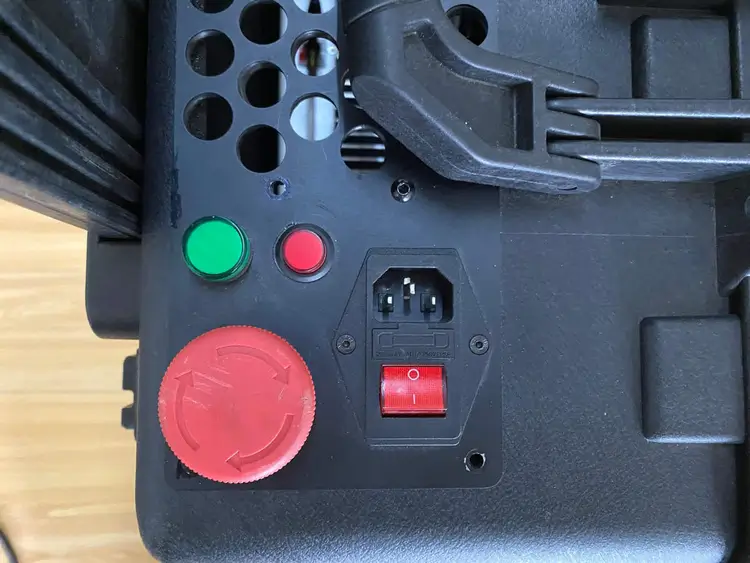

Power on Indication
1 of 6Laser Indicator
2 of 6Emergency Button
3 of 6Power Switch
4 of 6Power Interface
5 of 6Foot Switch
6 of 6TECHNICAL SPECIFICATIONS of ZG-LC100
CATEGORY | SPECIFICATIONS |
---|---|
Laser Type | Fiber Laser (JPT) |
Laser Model | YDFLP-CL-100-1-A |
Laser Output Mode | Pulsed/Continuous |
Average output power | >100w |
Max. pulse energy | 1.5mJ |
Frequency | 1000-4000kHz |
Pulse Width | 200-500ns |
Cooling Method | Integrated Air Cooling |
Power Consumption | <450w |
Resistance to High Reflection | Yes |
Beam Diameter | 4.0± 0.5mm |
Power Regulating Range | 0-100% |
operating Temperature Range | 0-40℃ |
Storage Temperature Range | -10 to 60℃ |
Machine Dimension | 617*469*291mm |
Packing Dimension | 750*580*500mm |
Net Weight | 28kg |
Gross Weight | 46kg |
Laser Head Weight | 0.62kg |
Packing List
ITEM | QTY |
---|---|
Laser Cleaning Machine | 1 set |
Laser Protection Goggles | 1 set |
163mm F-theta Lens | 1 set |
254mm F-theta Lens | 1 set |
Wireless Handheld Control Card | 1 set |
Power Cable | 1 set |
USB-Type C Cable | 1 set |
Miniature Self-locking Aviation Connector | 1 set |
APPLICATION

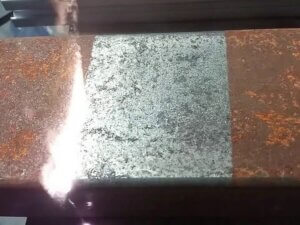

Rust Removal

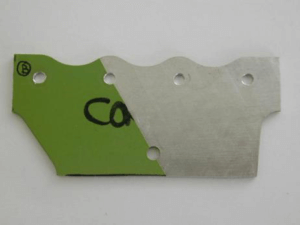

Paint Removal

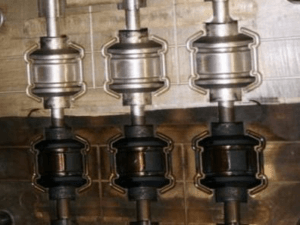

Degreasing

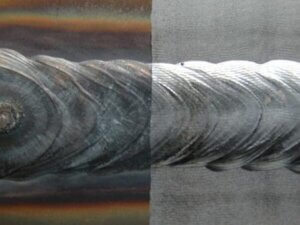

Pretreatment of part before coating

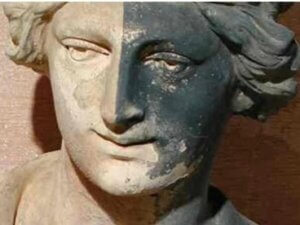

Cultural Relics Restoration

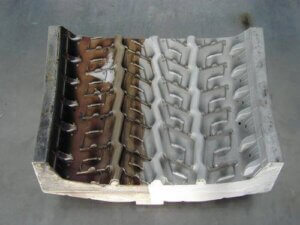

Mold Cleaning

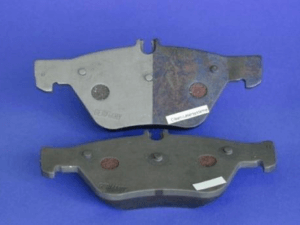

Oxide Removal

Weld Cleaning
SAMPLES
