ZG-GCAutomatic Tube Laser Cutting Machine
The professional laser pipe cutting machine is an economical laser pipe cutting machine. It integrates laser processing equipment of light, machine and electricity. It can quickly process various specifications of sheet metal pipes. It has rapid processing, small cutting seams, and thermal effect. Small features, especially suitable for sheet metal processing.
LASER SYSTEM OPTIONS
Different Types of Chuck
Chuck diameter Φ120mm, Φ160mm, Φ220mm, Φ350mm, Φ400mm, Φ500mm. High precision chuck with three jaws wedge-shaped oversized through-hole collet. The sliding surface of the chuck is hardened and precision ground, and directly lubricated for high quality to ensure stable and reliable high-speed operation.
Different Types of Laser Head
Adopt auto-focus cutting head, high stability, good cutting quality, fast perforation and cutting. Automatic tracking, can automatically and accurately adjust the focus according to the thickness of the material, to ensure the best cutting effect of the whole board. Laser cutting heads can be customized for your production needs with different power and features to achieve more cutting needs, such as bevel cutting.
Intelligent Production
According to the actual situation, you can choose to configure the appropriate magazine system as needed to achieve efficient automatic production.

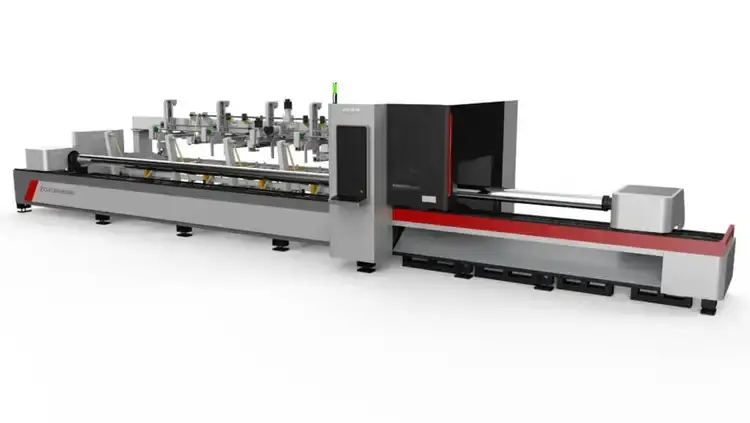

Tube Laser Cutting Bus System
Professional laser cutting software based on EtherCAT, powerful automatic graphic optimization and accurate edge finding assistance can greatly improve production efficiency.
3D Tube Laser Cutting Software
This is a professional cutting software for processing all types of tubes. Perfectly and seamlessly interfaced with the nesting software Tubest, Tubest realizes the nesting of parts, common edges, basic processes and special processes. After exporting the machining file, you can use TubePro directly for cutting.
Tube nesting software
This is a nesting software for tube laser cutting CNC system, developed for CypTube/TubePro tube cutting software, which enables drawing processing, common edge nesting, weld compensation and other process settings as well as part drawing.
LASER SYSTEM FEATURES
High efficiency of electro-optical conversion
ZG-GC has a very high electro-optical conversion efficiency (30%+), energy saving and environmental protection; excellent beam quality, smaller focused spot, making the cutting line finer, higher efficiency, better processing quality, easy maintenance;, compact size, good beam quality, maintenance-free, fast perforation, fast cutting speed, low cost.
Robust and durable machine tool production technology
Experience in manufacturing machine tools, the overall use of heavy-duty machine tool welding structure after stress relief annealing rough finishing, secondary aging treatment to eliminate stress, anti-deformation, more durable, by high-temperature annealing and natural aging to eliminate welding stress, to ensure long-term use of stable non-deformation, the machine tool has excellent shock resistance, high rigidity and stability, to effectively ensure high speed, high precision and high stability of the entire machine operation when high-speed cutting.
Dual drive servo motor system
Adopt gantry type brand double servo motor drive system, synchronous double drive, effectively ensure the high speed, high precision and high stability of the whole machine operation when cutting.
For our complete list of features and options, contact a Chutian Laser expert.
TECHNICAL SPECIFICATIONS
The ZG-GC laser pipe cutting machine is independently developed by ZG laser, the bed is cut and welded by the whole plate of 25mm steel plate, the machine is equipped with full stroke pneumatic chuck, mainly used for cutting, shaping and discharging metal pipes, applicable to various metal pipes of 16-220mm diameter and different shapes.
| Feature/Model | ZG-GC |
|---|---|
| Round Tube Processing Dim. | Φ20-Φ254mm |
| Square Tube Processing Dim. | 20*20mm-200*200mm |
| Profile Processing | Yes |
| Max Single Tube Loading Weight | 200kg |
| Max Bundle Loading Weight | 3000kg |
| Chuck Type | Pneumatic chuck |
| Chuck Max. Loading Weight | 200kg |
| Chuck Rotating Speed | 120r/min |
| Max. Moving Speed | 140m/min |
| Max. Acc. Speed | 1.2G |
| Positioning Accuracy | ±0.03mm/m |
| Repositioning Accuracy | ±0.03mm |
| Laser Power | 1.5KW~6KW |
| Overall Dimensions (L*W*H) | 12500×3000×2600mm |
| Overall Dimensions (L*W*H) loading structure incl. | 12500×4700×2600mm |
APPLICATIONS
Specialized in cutting round, square, flat round, oval, shaped, U-shaped, T-shaped, H-shaped, L-shaped and many other metal pipes.
SAMPLES OF ZG-GC
