ZG-MF(Portable) Desktop Laser Marking Machine

The laser marking enclosed workbench machine can engrave on metal and non-metal materials.
The metal etching machine has a sealed structure. During the working process, the mist will be kept in the closed laser cabinet and will not be discharged to the outside. Environmentally friendly, friendly, and healthy, this design is aimed at the European market or other markets with high demands on the working environment. The metal etching machine is particularly effective.

ZG-MF LASER MARKING MACHINE FEATURE

  1. The laser marking machine adopts a scanning system controlled by a high-speed magnetic induction motor with a laser line. The advantages of high precision and high speed.
  2. Fiber laser models have a service life of over 100,000 hours. Almost no maintenance is required during this period.
  3. Permanent marking. Laser marking is permanent marking. It will not fade or become illegible over time like traditional marking methods, including inkjet, hand engraving, dot matrix marking, etc. It will not fade or become illegible over time like traditional marking methods, including inkjet, hand engraving, dot marking, etc.
  4. Support coding, serial number, batch number, date number, 2D barcode, and other code marking
  5. Any depth of the processed product is adjustable. Marking is clear, beautiful, permanent, and not easy to wear.
  6. High precision: 0.0025mm repositioning accuracy. Minimum line width 0.01mm.
  7. Non-contact process. It will not cause mechanical extrusion or mechanical stress on the material. The laser beam does not move the workpiece
  8. Powerful software that can support AutoCAD, CordiIDRAM mapping Dxf, pit, and BMP formats.
  9. Support almost all Windows-based software such as Coreldraw, AutoCAD, and Photoshop. no need to adjust the Q switch easier than YAG diode marking machine
  10. Rotary attachment is optional for cups, rings, pens, and more rotary marking items.

For our complete list of features and options, contact a Chutian Laser expert.

TECHNICAL SPECIFICATIONS

The ZG-MF series offers configurations that are ideal to mark small codes, or when marking time isn’t an issue.

CATEGORY SPECIFICATIONS
Nominal Laser Output Power 20W/30W/50W
Nominal Pulse Repetition Rate 10 kHz, 20kHz
Power Consumption 240W, 250W
Laser Type Solid-state ytterbium-doped fiber
Supply Voltage 24 VDC
Pulse Energy Up to 1 mJ
Pulse Width 100 ns for 3 m fiber cable, 125 ns for 5 m fiber cable
Wavelength 1064 nm
Beam Quality <2
Laser Safety Class Class 4,Class 1
Cooling Air Cooling
Fiber Cable Length 3m, 5m
Fiber Cable Minimum Bending Radius Static: 80 mm Dynamic: 150 mm
Laser Source MTBF 100,000 hours
Barcode validation (optional) Cognex or others
HMI Software Web based, Allen-Bradley, Siemens
I/O Terminal Block I/O, Encoder Signal
Communications Ethernet/IP, RS - 232, USB
Weight EM-Smart: 10 kg / Desktop type: 30 kg / Standard type: 120 kg
Environmental Conditions 1 Temperature: 10 °C to 35 °C, Humidity: 10% to 90% (without condensation)
Approvals CE,FDA

APPLICATIONS

The ZG-MF is a fiber laser marking systems that creates permanent marks on all types of metals, rubber and plastics. It can be used for all types of identifiers, such as serial numbers, data matrix codes, QR codes and logos.

SAMPLES

Application

COMPLETE REMOTE SERVICE WHENEVER YOU NEED IT

20220519154622

More Products

ZG-HW 3 In 1 Handheld Laser Welder

The 3-in-1 handheld laser welder has both laser cutting and laser cleaning functions because of its unique laser system, which allows free conversion between the three functions for multiple industrial uses.

ROBOT LASER WELDER

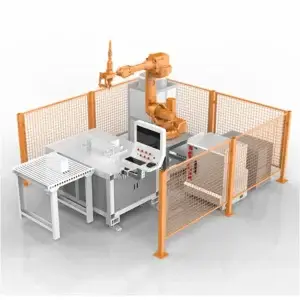

ZG-GX Robot Laser Welding Machine
