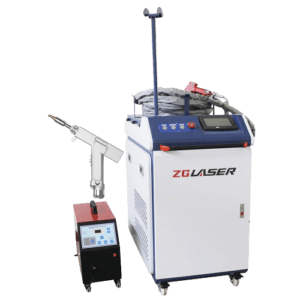

ZG-HW3 IN 1 Handheld Laser Welder

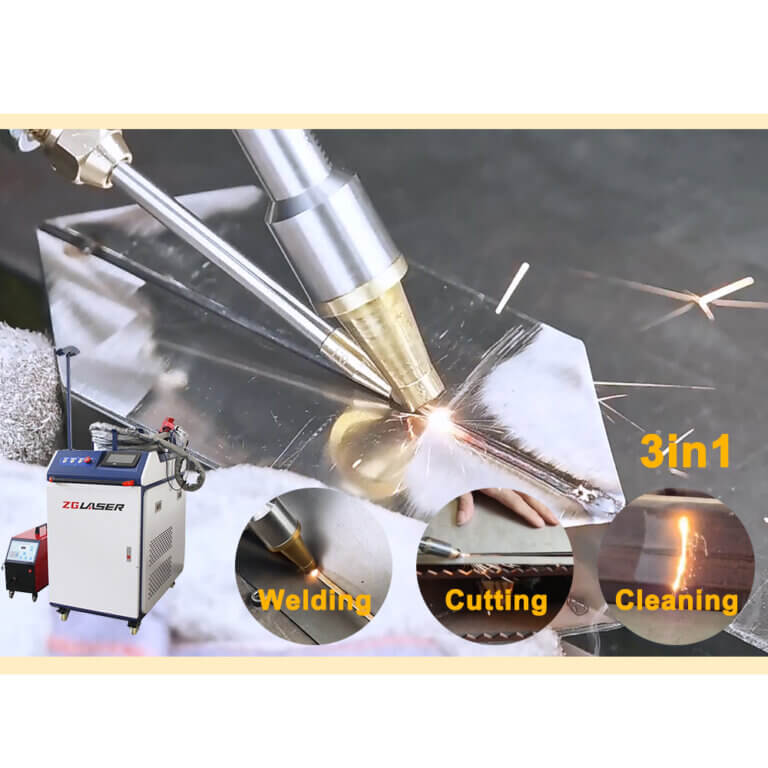

ZG-HW laser welding, cleaning, and cutting machine is a portable all-in-one laser system consisting of a three-in-one laser welding, cleaning, and cutting machine consisting of a fiber laser generator, a handheld laser gun, a water cooler, and a three-in-one control system for laser welding, cleaning and handheld cutting, each handheld laser gun is portable, convenient and easy to use. Its handheld laser guns can cut and weld metals and clean rust, paint, resin, coatings, oil, and stains.
3 IN 1 Handheld Laser Welder Options

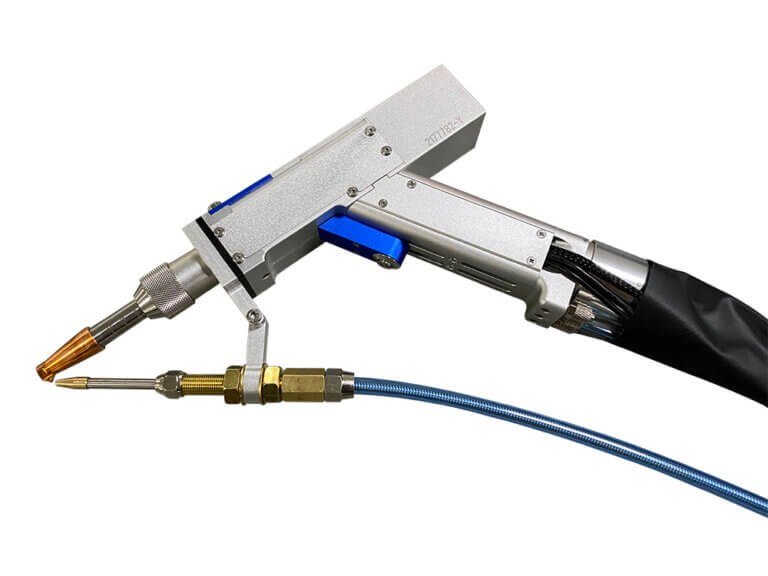

3 In 1 Handheld Laser Gun
The handheld laser gun can weld, clean, and cut with an intelligent controller for easy-to-use, flexible processing, easy carry, small size, low cost, and no consumables.
Fiber Laser Generator
The JPT, Raycus, and MAX lasers are optional and feature higher photoelectric conversion efficiency, lower error rate, low power consumption, and maintenance-free and compact construction. Low error rate, low power consumption, maintenance-free and compact.
Built-in Water Chiller Design
It can avoid the shackles of wires to fit more sites and has good dustproof and anti-condensation effects.
Intelligent Control Panel
The built-in parameter adjustment range is large and easy to start with one key.
Feature
- As a laser cleaner, it is a very green cleaning method. It does not require the use of any chemicals or cleaning solutions. The waste after cleaning is a solid powder.
- As a laser welding machine, the weld seam is smooth and beautiful; no need to polish, no deformation or welding scars, and the weld is firm. Save time and improve efficiency.
- As a portable laser cutting machine, it is very easy to operate and can cut various types of metals.
- The portable laser gun is easy to carry and features a simple handheld configuration.
There is a touch screen on it. Also, it is easy to switch the parameters with the touch screen and simplify the operation during the work. The weight is 0.7Skg. It will not feel fatigued when using it. - It adopts a professional fiber laser source, low error rate, low power consumption, is maintenance-free, and is easy to assemble. Assembly
- Especially designed industrial constant temperature water-cooled chiller. The chiller is equipped with a filter. It has safe, durable, and stable working performance with long service life. A powerful and stable water cooling system will ensure the perfect working of the fiber laser source.
- Portable design. Compact and ergonomic design, with wheels for free movement.
For our complete list of features and options, contact a Chutian Laser expert.
TECHNICAL SPECIFICATIONS
| Model | ZG-HW-1000 | ZG-HW-1500 | ZG-HW-2000 | ZG-HW-3000 |
|---|---|---|---|---|
| Laser Power | 1000Watt | 1500Watt | 2000Watt | 3000Watt |
| Laser Source | Fiber Laser Manufacturer by Raycus/JPT/MAX | |||
| Wavelength（nm） | 1064 - 1080 | |||
| Laser Mode | Laser Welding/ Laser Cutting/ Laser Cleaning | |||
| Beam Quality | M2＜1.2 | M2＜1.5 | ||
| Length of Fiber | 5-10m(customized) | |||
| Working Method | Continuous | |||
| Interface | QBH | |||
| Welding Width | 0.2-0.5mm(adjustable) | |||
| Laser Preview | Integrated Red Light Preview | |||
| Cooling | Integrated Water Chiller | |||
| Language | Chinese/English/Russian/Korean/Vietnamese | |||
| Power Supply | AC 220V, 50Hz/60Hz | AC 380V, 50Hz/60Hz | ||
| Security System | TSS - Trip Security System Available | |||
| Parameter Setting | Touch Panel | |||
| Welding Materials | Carbon Steel, Stainless Steel, Aluminum, Brass, Alloy etc. | |||
| Welding Speed | 0-120mm/s (adjustable) | |||
| Ambient Temperature | 10~40°C | |||
| Environmental Humicity | <70% without condensation | |||
Laser Welding Parameters
| Material | Laser Power(watt) | Maximum Penetration (mm) |
|---|---|---|
| Stainless Steel | 1000 | 0.5-3 |
| Stainless Steel | 1500 | 0.5-4 |
| Carbon Steel | 1000 | 0.5-2.5 |
| Carbon Steel | 1500 | 0.5-3.5 |
| Aluminum Alloy | 1000 | 0.5-2.5 |
| Aluminum Alloy | 1500 | 0.5-3 |
| Galvanized Sheet | 1000 | 0.5-1.2 |
| Galvanized Sheet | 1500 | 0.5-1.8 |
Samples
APPLICATIONS
3 in 1 handheld laser machine can be used in manufacturing, automotive, shipbuilding, battery, aerospace, kitchenware.
Shelves, elevators, guardrails, distribution boxes, ovens, metal furniture, biomedical, powder metallurgy, jewelry.
Electronics, hardware, optical communication, sensors, auto parts, porcelain teeth, glasses, solar energy.
and precision parts manufacturing.
