Automated high-volume tube processing
Automatic TubeFiber Laser Cutting Machine
A configurable 1–15 kW fiber laser system with automatic loading for continuous cutting of round, square, rectangular and special-shaped metal tubes.
Continuous tube loading workflow
Configurable laser-power range
Round, square, rectangular and special shapes
01 / Automatic tube production
Load continuously.
Cut profiles consistently.
The ZG-FC-3000-6020GC is designed for high-volume metal tube and profile processing. Its automatic feeding structure reduces repeated manual loading while the chuck, support and CNC system coordinate programmed cutting.
- Automate loading and cutting for repeat batch orders.
- Process round, square, rectangular and suitable special-shaped profiles.
- Configure laser power, loading, support and sorting around the real part family.

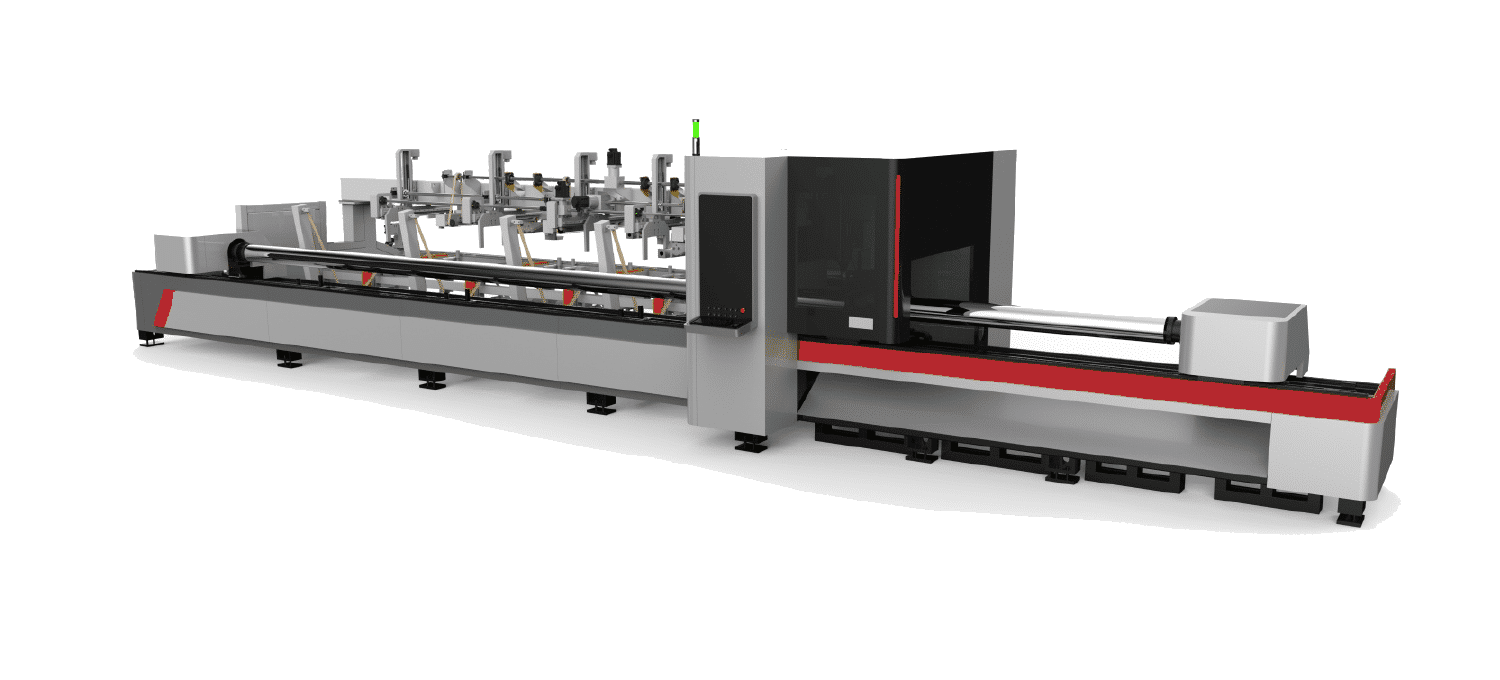

Automatic tube fiber laser cutting platform for high-volume pipe and profile work.
Fiber laser output selected from material, wall thickness, profile and throughput.
Feeding structure and buffer arrangement matched to tube length and profile mix.
Discharge, sorting and production-line interfaces can be defined for the project.
Confirm supported profile shapes, diameter and length ranges, maximum tube weight, loading bundle, chuck arrangement, tailing requirement and finished-part handling in the technical agreement.
02 / Core capabilities
Automate loading.
Scale repeat tube output.
The machine is built around continuous pipe and profile processing, with handling functions configured for the actual production mix.
Automatic continuous loading
Reduce repeated manual handling with a feeding structure configured for batch tube and profile production.
Multi-profile adaptability
Prepare round, square, rectangular and suitable special-shaped profiles within the validated clamping range.
1–15 kW power range
Select laser output from the material, thickness, profile geometry, piercing demand and target throughput.
Coordinated chuck and support
Match chuck arrangement, following supports and unloading method to profile geometry, length and weight.
High-volume cycle design
Use automatic loading and programmed cutting to shorten non-cutting time across repeat production orders.
Expandable automation
Add intelligent feeding, finished-part sorting or production-line interfaces according to workshop requirements.
03 / Machine details
Chuck, cutting head
and tube software.
The delivered chuck, support, cutting head and software configuration can vary with the tube range, laser power and automation scope.

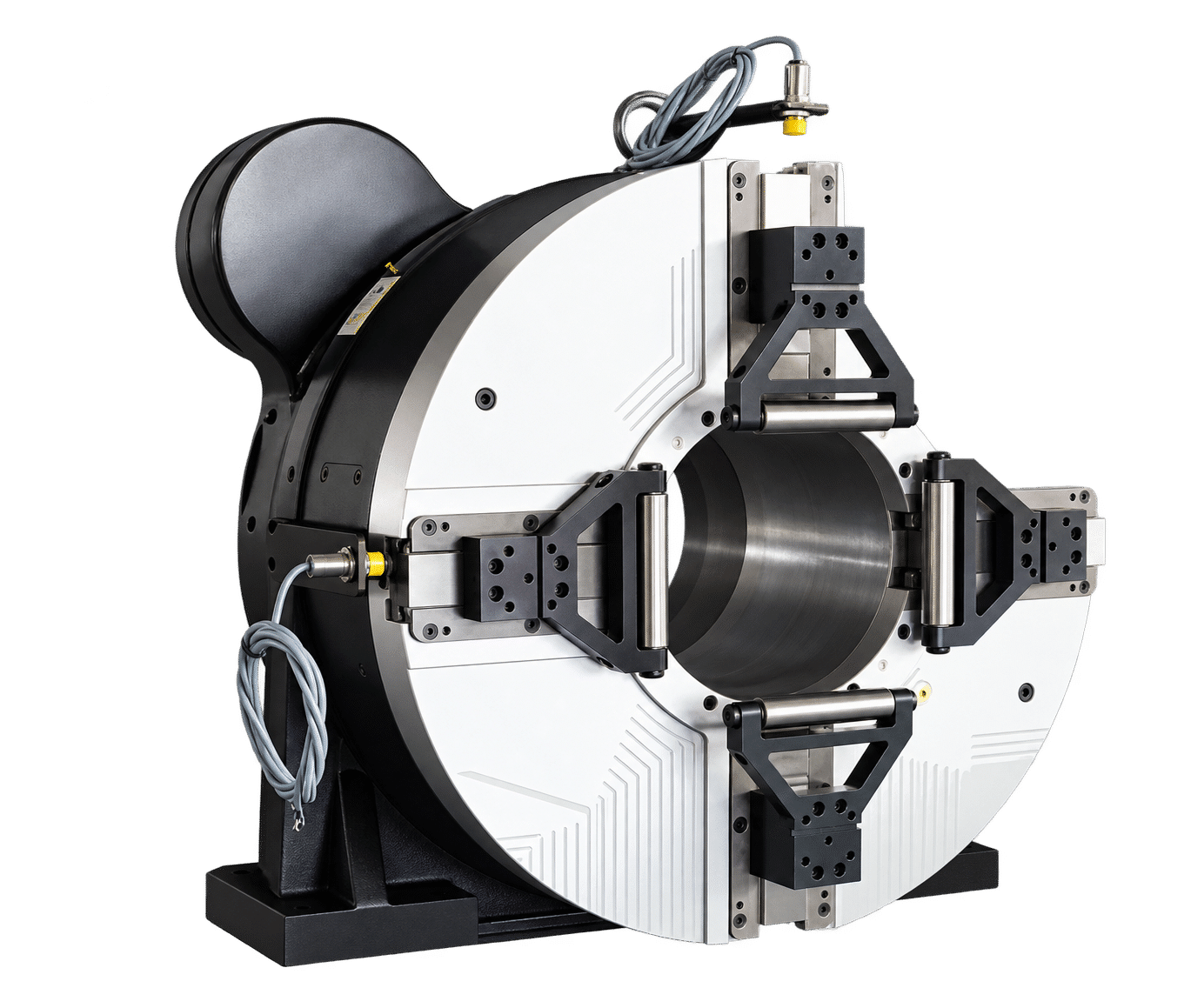

Pneumatic tube chuck
The chuck centers and rotates the tube for programmed profile cutting; final jaw and chuck arrangement is selected for the workpiece range.

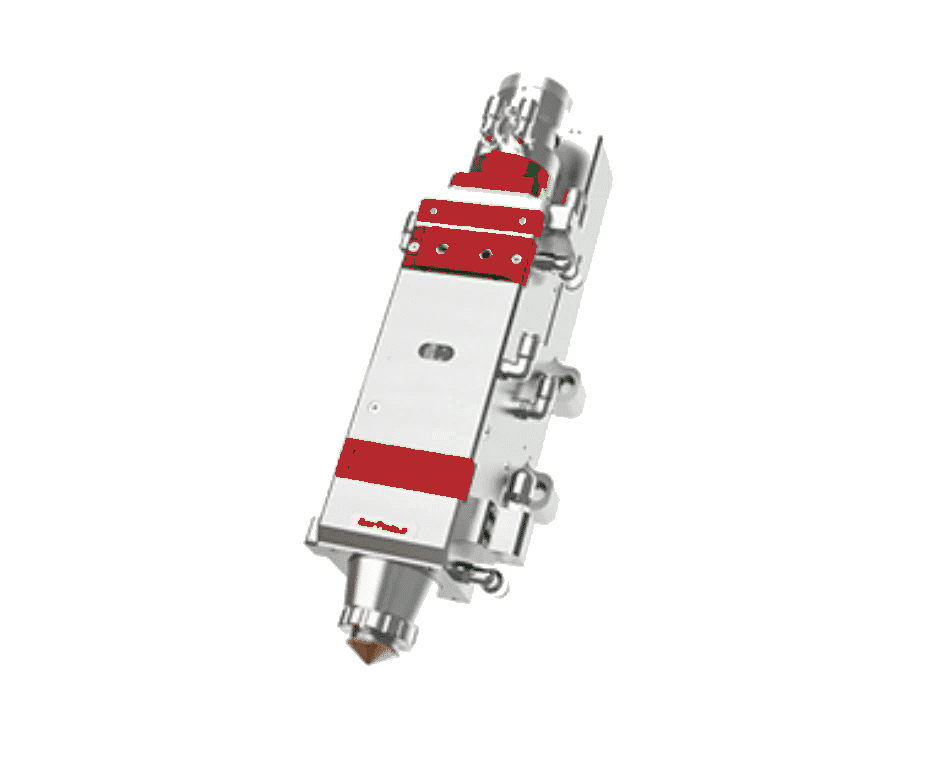

Fiber laser cutting head
The cutting head is matched to the selected laser source, focus strategy, material and wall-thickness range.

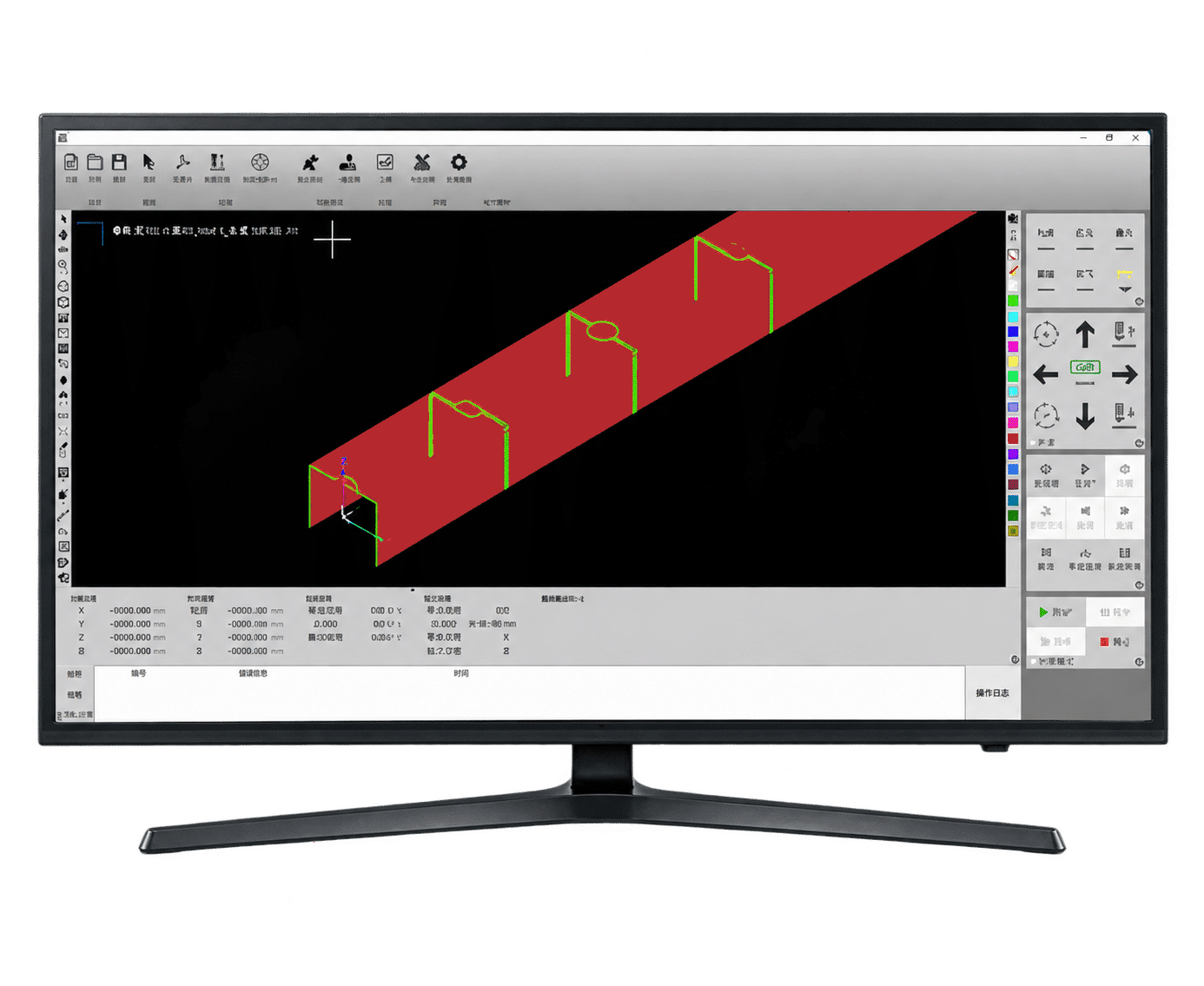

Tube cutting software
The control workflow supports profile programming, path preparation and coordinated machine operation.
Need to confirm a tube or profile? Send the workpiece range ↗
04 / Applications
Built for repeat pipe
and profile production.
Final capability depends on material, wall thickness, profile geometry, tube length, loading method, laser power and acceptance criteria.
Define the complete tube family before selecting the automation. Provide profile shapes, outside dimensions, wall thicknesses, lengths, weights, bundle condition, drawings and target output.
05 / Configuration
One automatic platform.
A project-specific tube range.
Select the laser power and automation around the real profiles, bundle condition, loading cycle and output requirement.
| Parameter | Available configuration |
|---|---|
| Model | ZG-FC-3000-6020GC |
| Laser type | Fiber-optic laser |
| Output power | 1000–15000 W |
| Processing function | Automatic metal tube and profile cutting |
| Automatic loading | Feeding structure configured for tube length, profile and batch workflow |
| Supported profiles | Round, square, rectangular and suitable special-shaped tubes |
| Tube fixture | Pneumatic chuck and coordinated support system; project-configured |
| Tube capacity | Configured by profile shape, diameter, wall thickness, length and weight |
| Sorting / discharge | Manual, assisted or intelligent automatic solution according to project scope |
| Application positioning | High-volume pipe and profile production |
| Laser working medium | Erbium-doped fiber |
| Power stability | <3% |
| Minimum line width | ≤0.15 mm |
| Continuous working time | 24 hours |
| Optical path system | Optical fiber transmission |
| Laser wavelength | 1080 nm |
| Beam quality | 2.1–2.7 |
| Repeatability | Reference page states ≤ ±0.02 mm/m; confirm for selected configuration |
| Laser power stability | Configured according to the selected laser source |
06 / Project evaluation
From a tube family
to an automated cutting cell.
The loading and cutting system should be evaluated with representative profiles, batch sizes and the real upstream/downstream workflow.
Tube-family review
Provide drawings, materials, profile shapes, outside dimensions, wall thicknesses, lengths, weights and batch quantities.
Automation study
Match loading structure, buffer, chuck, supports, laser power, unloading and sorting to the required cycle.
Representative sample cutting
Validate typical and difficult profiles, cut quality, accuracy, tailing strategy and cycle assumptions.
Technical agreement
Freeze the tube range, automation boundary, components, utilities, software, training and acceptance scope.
07 / Common questions
Before you automate
tube loading and cutting.
Confirm the entire tube family and handling cycle before locking the machine configuration.
What makes this machine automatic?
The system is configured with automatic feeding so tubes can be loaded into the cutting cycle with less repeated manual handling. Loading buffer, sorting and line-integration scope should be confirmed for the project.
Can it cut round, square and rectangular tubes?
Yes, the product is positioned for round, square, rectangular and suitable special-shaped profiles. Confirm exact dimensions, wall thicknesses, straightness, lengths, weights and clamping requirements before quotation.
How should I select the 1–15 kW laser power?
Use the material, maximum and typical wall thickness, profile geometry, piercing demand, assist gas, edge quality and target output. The highest power is not automatically the best choice.
Can special-shaped profiles be loaded automatically?
It depends on the profile geometry, orientation consistency, bundle condition and feeding design. Representative samples and drawings are required to validate automatic loading.
Can the system connect to an automatic production line?
Intelligent feeding, sorting and line interfaces can be configured. Define the upstream material supply, downstream part handling, signals and responsibility boundary in the technical agreement.
What specifications still need confirmation?
Confirm tube range, usable length, tube weight, loading bundle, chuck and supports, tailing strategy, discharge, sorting, axis performance, laser source, cutting head, CNC, extraction, utilities, dimensions and weight.
What should I send for a recommendation?
Send representative drawings, material grades, profile shapes and dimensions, wall thicknesses, lengths, weights, batch quantities, cycle target, acceptance criteria and available factory space.
08 / Tell us about the tube family
Turn your profile mix
into an automated cutting plan.
Share representative parts, bundle condition and required output. ZG Laser can review the loading, chuck, support, laser-power and finished-part handling configuration.
- Profile shapes, dimensions, walls, lengths and weights
- Materials, drawings and edge-quality priorities
- Bundle condition, batch quantities and shift output
- Loading, unloading, sorting and line-integration needs
